On-Metal UHF RFID Label - NXP UCODE 8 - 65 x 35 mm Rectangle - RFID Tag

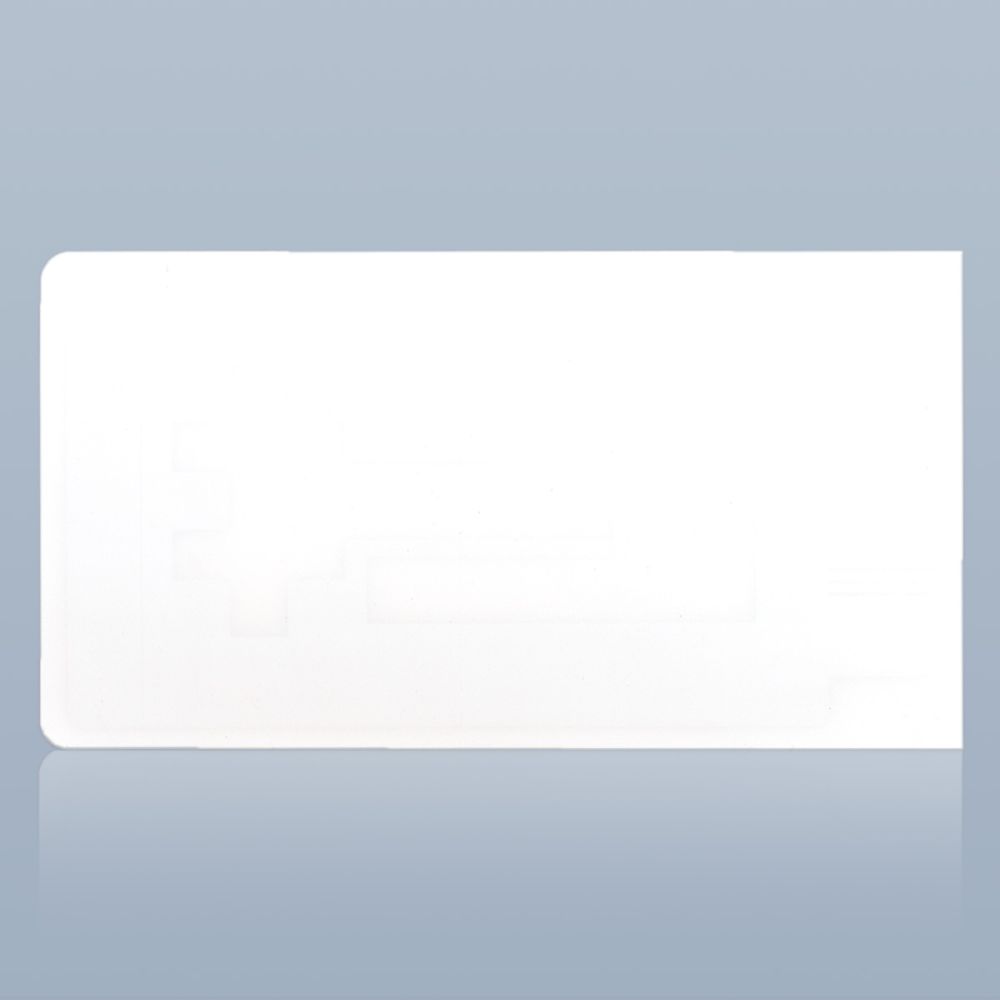

A white, large, rectangular, PET-faced UHF RFID on-metal foam sticker with an NXP UCODE 8 chip. Regular adhesive and thermal printable PET.
SKU
2PP9V4YTQA
- Quantity Unit Price
- 1000000+
- 500000
- 100000
- 50000
- 10000
- 1000
- 100 $0.72
- 10 $0.77
| Product | Inlay |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Limited Supply |
| Lead Time | Immediate |
| Minimum Order Quantity | 10 |
| Standard Packaging | 200 Unit Roll |
| Unit Count | 1 |
| Compliance | EPC Gen2, REACH, RoHS |
| Tag Technology | UHF RFID |
| Frequency | 860-960 MHz (UHF) |
| Chip | NXP UCODE 8 |
| UHF RFID Memory | EPC 128 Bits; User 0 Bits |
| UHF RFID Standards | ISO 18000-63 / Gen 2 |
| Air Interface Protocol | EPC Class 1 Gen 2, ISO 18000-63 |
| UHF RFID Read Range | Short |
| On-Metal | Yes |
| Antenna Dimensions | 60 mm (L) x 30 mm (W) |
| Dimensions | 65 mm (L) x 35 mm (W) x 1 mm (H) |
| Shape | Rounded Rectangle |
| Size | Large |
| Color | White |
| Finish | Semi-Gloss |
| Attachment | Adhesive |
| Adhesive | General Purpose |
| Materials | Adhesive, Aluminum, Foam, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 70 mm (L) x 42 mm (W) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Individual, Strip, Fanfold, Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Shelf Life | 2 Years @ 23° C, 50% RH |
| Supported Print Technology | Thermal Transfer |
