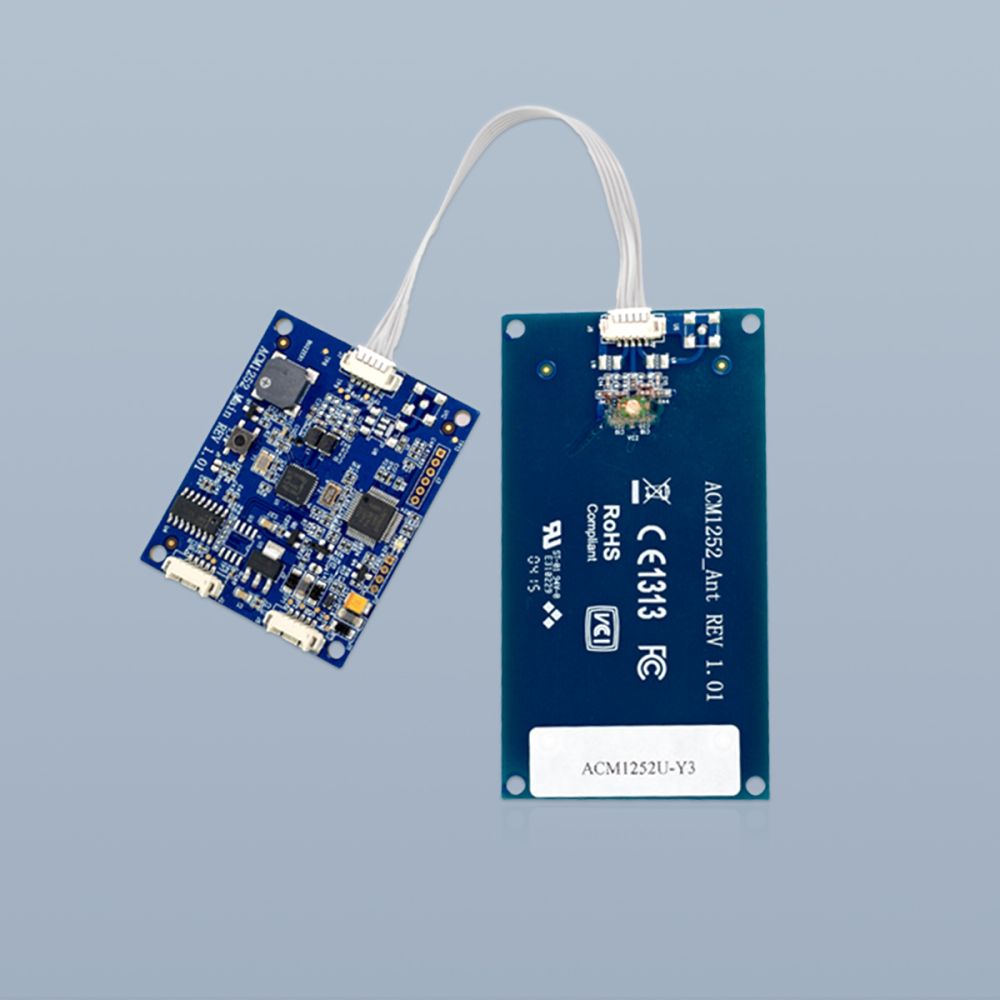

ACS ACM1252U-Y3 NFC USB Reader Module with Detachable Antenna

A USB connected, NFC module with detachable antenna which supports reading/writing NFC tags, peer-to-peer and card emulation modes; supports Type 1 - 4 NFC tag types; used for integration into embedded hardware systems.
SKU
B3QYDDCB9J
$49.87
  • Buy 10 for $47.36 each and save 5%
  • Buy 25 for $45.35 each and save 9%
  • Looking for more? Contact us for a quote!
Why GoToTags
About GoToTags

The most experienced and trusted
Read more

Low prices on NFC tags

Best prices and most inventory
Read more

Short lead times for high volumes

Easy ordering and fast turn around
Read more

Shipping to countries worldwide

Fast shiping to customers worldwide
Read more

High quality NFC tags with warranty

High-quality products and service
Read more

NFC tag NDEF encoding service

NFC tag encoding services
Read more

GoToTags app and software

We design our own software
Read more

Specifications
Product Type Reader/Writer
Manufacturer Advanced Card Systems
Manufacturer Sku ACM1252U-Y3ENGA202
Country of Manufacture Hong Kong SAR China
Shipment Origin United States, Hong Kong SAR China
Harmonized Tariff Code 8471.60.90 (Input or Output Unit)
Availability Inventory
Lead Time Immediate
Minimum Order Quantity 1
Color Blue
Dimensions Reader: 45.0 mm (L) x 55.0 mm (W) x 5.1 mm (H); Antenna: 49.5 mm (L) x 91.0 mm (W) x 5.1 mm (H)
Tag Technology NFC
Frequency 13.56 MHz (NFC)
Compliance CE, FCC, REACH, RoHS 2
Connection USB 2.0 (Type A)
Features Buzzer, Firmware Upgradable, Lights, NFC
Power USB
NFC Certification NFC Forum
NFC Mode Card Emulation, Peer to Peer, Tag Reader/Writer
NFC Standards NFC Forum - Type 1, NFC Forum - Type 4
Operating System Android, Linux, Mac, Windows
Operating Temperature 0°C to 50°C
Software GoToTags NFC Encoder, GoToTags Desktop App, GoToTags Windows App
Shelf Life 10+ Years @ 23°C, 50% RH
Weight (kg) 0.0266

The ACM1252U-Y3 USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems.

This reader module supports the three NFC modes (card reader/writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).

The ACM1252U-Y3 comes with a detachable antenna which provides flexibility when integrating the module into embedded systems, such as kiosks and vending machines. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.

The ACM1252U-Y3 is compatible with GoToTags desktop software.


Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader:
    • Read/write speed up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Type A and B, MIFARE, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags
    • Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
    • Built-in anti-collision feature (only 1 tag is accessed at any time)
    • NFC Support:
      • NFC Reader/Writer Mode
      • Peer-to-Peer Mode
      • Card Emulation Mode
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
    • User-controllable bi-color LED
    • User-controllable buzzer

All specifications are subject to change without notice and may be inaccurate; always verify yourself.
