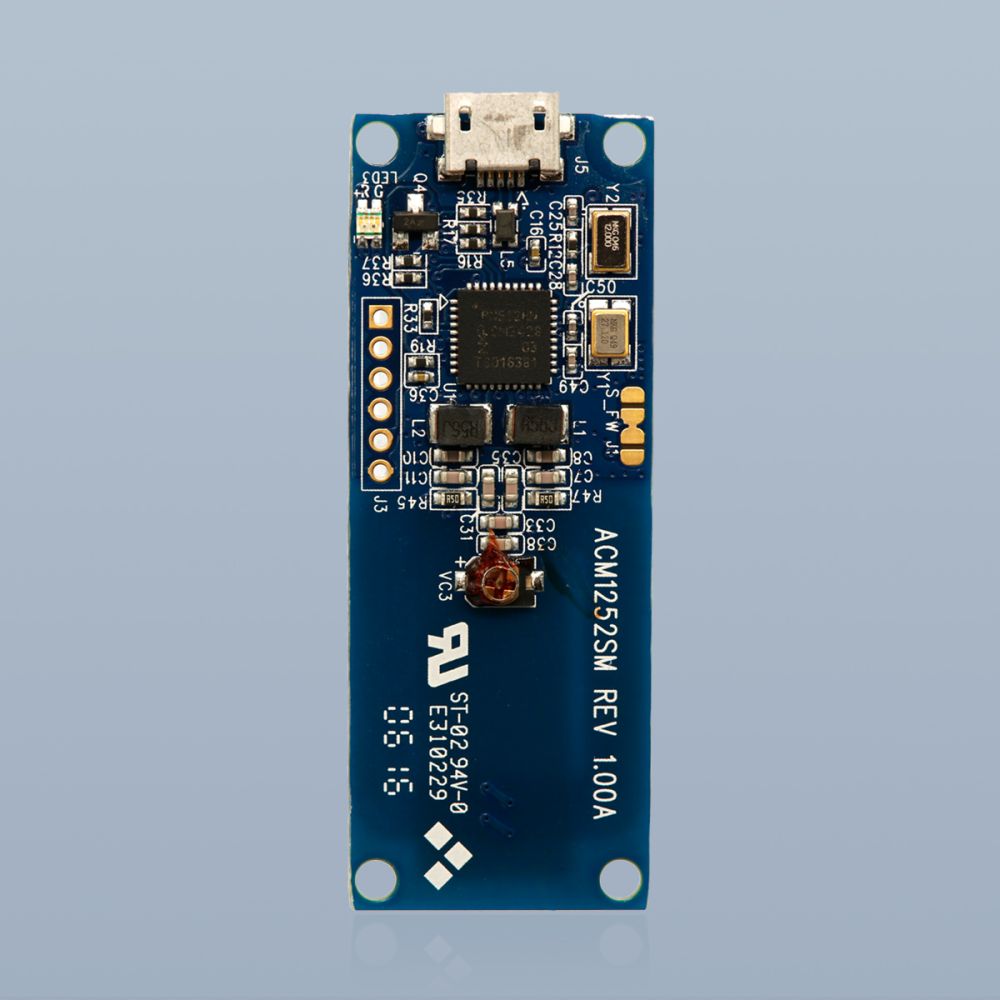

ACS ACM1252U-Z2 NFC Module USB Reader

A small, micro USB connected NFC module which supports reading/writing NFC tags, peer-to-peer and card emulation modes; supports Type 1 - 4 NFC tag types; used for integration into embedded hardware systems.
SKU
RPT8DE4PHX
$45.00
  • Buy 10 for $42.86 each and save 5%
  • Buy 25 for $40.91 each and save 9%
  • Looking for more? Contact us for a quote!
Why GoToTags
About GoToTags

The most experienced and trusted
Read more

Low prices on NFC tags

Best prices and most inventory
Read more

Short lead times for high volumes

Easy ordering and fast turn around
Read more

Shipping to countries worldwide

Fast shiping to customers worldwide
Read more

High quality NFC tags with warranty

High-quality products and service
Read more

NFC tag NDEF encoding service

NFC tag encoding services
Read more

GoToTags app and software

We design our own software
Read more

Specifications
Product Type Reader/Writer
Manufacturer Advanced Card Systems
Manufacturer Sku ACM1252U-Z2ACSA204
Country of Manufacture Hong Kong SAR China
Shipment Origin United States
Harmonized Tariff Code 8471.60.90 (Input or Output Unit)
Availability Inventory
Lead Time Immediate
Minimum Order Quantity 1
Color Blue
Dimensions 52 mm (L) x 20 mm (W) x 6 mm (H)
Tag Technology NFC
Frequency 13.56 MHz (NFC)
Compliance CE, FCC, REACH, RoHS 2
Connection USB 2.0 (Micro)
Features Firmware Upgradable, Lights, NFC
Power USB
NFC Mode Tag Reader/Writer
NFC Standards ISO 14443 Type A, ISO 18092, MIFARE, FeliCa, PC/SC
Operating System Android, Linux, Mac, Windows
Operating Temperature 0°C to 50°C
Software GoToTags NFC Encoder, GoToTags Desktop App, GoToTags Windows App
Shelf Life 10+ Years @ 23°C, 50% RH
Weight (kg) 0.0037

ACM1252U-Z2 is a small NFC reader module developed based on 13.56 MHz contactless technology, for fast and easy integration to embedded systems.

The ACM1252U-Z2 supports ISO 14443 Type A and B cards, and MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 30 mm (depending on tag type used). ACM1252U-Z2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

It is PC/SC-compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable micro-USB cable that allows it flexibility to be located far from the USB host interface.


Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance /li>
  • Contactless Card Support:
    • Read/write speed of up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
    • Supports ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa and all four types of NFC (ISO 18092 tags)
    • Built-in anti-collision feature (only one tag is accessed at any time)
  • Application Programming Interface:
    • Supports PC/SC
    • USB Firmware Upgradability

All specifications are subject to change without notice and may be inaccurate; always verify yourself.
