ACS ACM1552D-CW WalletMate II Boost Mobile Wallet NFC Module - Apple VAS & Google Smart Tap Certified

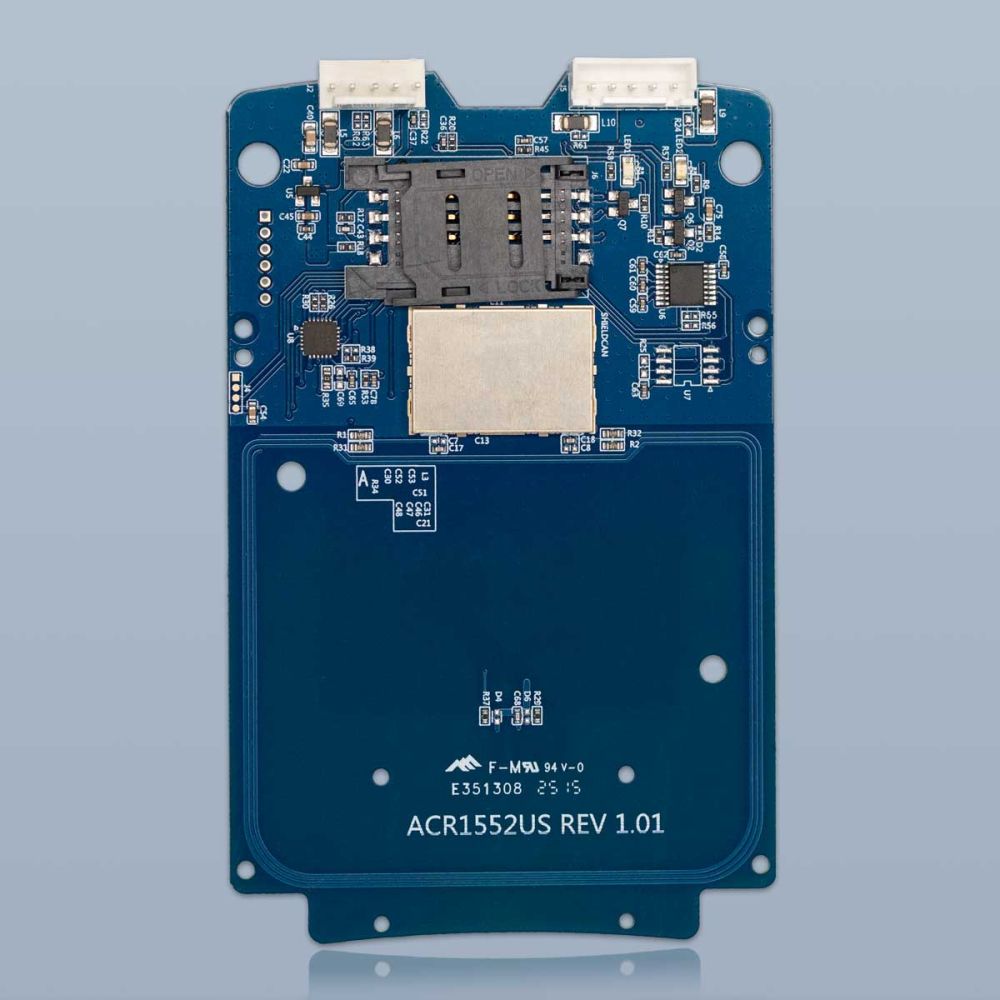

A USB or RS-232 connected modular NFC payment terminal certified by Apple VAS and Google Smart Tap to work with virtual mobile wallets, including Apple Wallet and Google Wallet; ideal for e-Payment. Configurable LED indicator and buzzer, upgradeable firmware. Supports reading/writing NFC tags, keyboard emulation and card emulation modes of Type 1 - 5 NFC tag types. The board is equipped with (J2): 5pin, Molex KK 254 Wire-to-Board Header compatible for USB and (J5): 5pin, JST B5BXH-A compatible for Serial Port using USB and RS-232 protocols respectively.
SKU
4EJBVZL6SJ
- Quantity Unit Price
- 10+
- 1 $102.10
| Product | Reader/Writer |
|---|---|
| Manufacturer | Advanced Card Systems |
| Manufacturer Sku | ACM1552D-CWACSA2001 |
| Country of Manufacture | Hong Kong SAR China |
| Shipment Origin | United States, China |
| Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
| Availability | Normally Stocked |
| Lead Time | Immediate |
| Minimum Order Quantity | 1 |
| Color | White |
| Dimensions | 67.0 mm (L) x 106.0 mm (W) x 16 mm (H) |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Compliance | CE, FCC, REACH, RoHS |
| Connection | Serial (RS-232) |
| Features | Buzzer, Firmware Upgradable, Lights, NFC |
| Power | 5V DC |
| NFC Certification | NFC Forum |
| NFC Mode | Card Emulation, Keyboard Emulation, Tag Reader/Writer |
| NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 18092, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5 |
| Operating System | Android, Linux, Mac, Windows |
| Operating Temperature | 0° C to 60° C |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| Weight (kg) | 0.020000 |
Files relating to Store products, GoToTags software and general Connected Things technology can be downloaded from the public GoToTags GitLab project.
- Artwork Templates – premade artwork templates for custom-printed products
- Encoding Data – files to provide data for tag encoding services
- NFC – technical specifications for NFC chip types, reader, NDEF, ...
- UHF RFID – technical specifications for UHF RFID chip types, readers, ...
- Products – additional information about Store products
If you cannot find the document you are looking for contact us.
The WalletMate II Boost is a specialized NFC reader module designed to enhance smartphone wallet experiences. Certified for Apple VAS and Google Smart Tap, it supports virtual passes such as loyalty, ticketing, and IDs on both iOS and Android. It is CCID & PC/SC compliant, offers high‑speed contactless communication up to 848 kbps, and operates in Reader/Writer, Card Emulation, and (USB) Keyboard Emulation modes.
Key Features
- Supported standards & tags
- ISO 14443 Type A & B
- ISO 15693
- ISO 18092‑compliant NFC tags
- MIFARE Classic®, MIFARE DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa, Topaz
- Mobile wallet certifications
- Apple VAS & Google Smart Tap certified
- Supports ECP 1.0 and ECP 2.0 (final approval for ECP 2.0 in process)
- Merchant private key stored inside secure element
- NFC modes
- Smart Card Reader/Writer
- Card Emulation
- Keyboard Emulation (USB interface only)
- Performance & flexibility
- Read/write speed up to 848 kbps (ISO 14443); 26 kbps (ISO 15693)
- Built‑in anti‑collision
- Programmable LED & buzzer; configurable read/write parameters
- Extended APDU support
- Firmware upgradable
- Reliability & compatibility
- MTBF up to 500,000 hours
- Works with Windows®, Linux®, macOS®, Android™, iPadOS®
Contactless Smart Card Interface
- Operating frequency: 13.56 MHz
- Reading distance: up to 70 mm (depending on tag type)
- NFC modes: Reader/Writer, Keyboard Emulation, Card Emulation
- Anti‑collision: Yes
SAM Card Interface
- 1 × ISO 7816 Class A (5 V) standard SIM‑size slot
- Read/write speed: 13.4 kbps – 1,250 kbps
- Clock frequency: 5 MHz (up to 10 MHz upon request)
- Protocols: T=0, T=1
Host Interface
- Protocol: USB or RS‑232 (TTL, upon request)
- USB: USB 2.0 Full Speed (12 Mbps), compatible with USB 3.0
- RS‑232 speeds: 9.6 / 19.2 / 38.4 / 57.6 / 115.2 (default) / 230.4 kbps
- Connectors: 5‑pin USB header (Molex KK 254 compatible); 5‑pin serial header (JST B5B‑XH‑A compatible)
- Supply voltage: 5 VDC; Max current: 300 mA
- Firmware upgrade: Supported
Physical Characteristics
- Module dimensions (L × W × H): 106.6 × 67.0 × 16.0 mm
- Antenna size: 65 × 60 mm
- Weight: 20 g ± 0.2 g
- Cable: 1.5 m, detachable (optional)
Peripherals
- LED: 1 × programmable (Blue & Green)
- Buzzer: 1 × programmable mono‑tone
Environmental & Reliability
- Operating temperature: 0 – 60 °C
- Humidity: up to 90% (non‑condensing)
- MTBF: 500,000 hours
Certifications & Compliance
- Certifications: Apple VAS, Google Smart Tap, IEC/EN 62368, CE, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQL
- Compliances: USB CCID, PC/SC
Operating System Support
- Windows®
- Linux®
- macOS®
- Android™
- iPadOS®
