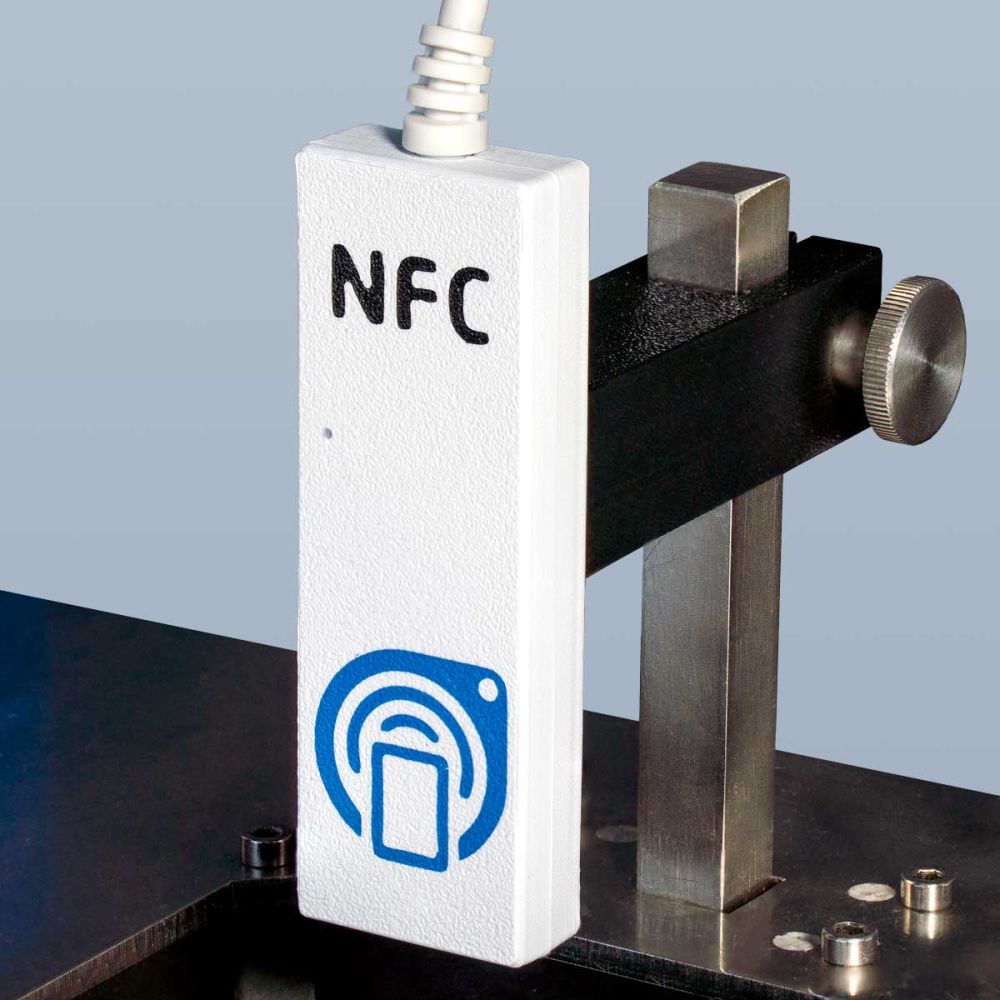

ACS ACM1552U NFC USB Mountable Reader
- Quantity Unit Price
- 100+
- 10 $68.54
- 1 $72.46
ACM1552U NFC USB Mountable Reader is developed based on the 13.56 MHz contactless technology. It can access contactless card and devices following the ISO 14443, ISO 15693, and ISO 18092 standards. This smart card reader module is designed for fast and easy integration into embedded systems using the included 10 mm square mount.
ACM1552U NFC USB Mountable Reader is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also supports three NFC modes:
- Smart Card Reader/Writer
- Card Emulation
- Keyboard Emulation - (tool download)
The compact size of the ACM1552U NFC USB Mountable Reader makes it an excellent choice for integration into small machines. Its small form factor offers flexibility and seamless integration into various applications, such as handheld devices and kiosks without compromising their functionality or usability.
Features
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Smart Card Support:
- Read/Write speed up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards, and ISO18092 NFC
- Supports MIFARE Classic®, MIFARE®, DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa, and Topaz
- Built-in anti-collision feature
- Supports extended APDU (max. 64 kbytes)
- NFC Support:
- Smart Card Reader/Writer Mode
- Card Emulation Mode
- Keyboard Emulation Mode
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED (Blue & Green)
- Compact Size
- USB Firmware Upgradability
| Product | Reader/Writer |
|---|---|
| Manufacturer | Advanced Card Systems |
| Country of Manufacture | United States |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
| Availability | Normally Stocked |
| Lead Time | Immediate |
| Minimum Order Quantity | 1 |
| Color | White |
| Dimensions | Strut - 50.0 mm (L) x 18.0 mm (W) x 18.0 mm (H) with 10.0 mm x 10.0 mm square hole / Case - 72.7 mm (L) x 24.0 mm (W) x 11.0 mm (H) |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Compliance | CE, FCC, REACH, RoHS |
| Connection | USB 2.0 (Type A) |
| Features | Buzzer, Firmware Upgradable, Lights, NFC |
| Power | USB |
| NFC Mode | Card Emulation, Keyboard Emulation, Tag Reader/Writer |
| NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 18092, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5 |
| Operating System | Android, Linux, Mac, Windows |
| Operating Temperature | 0° C to 60° C |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
