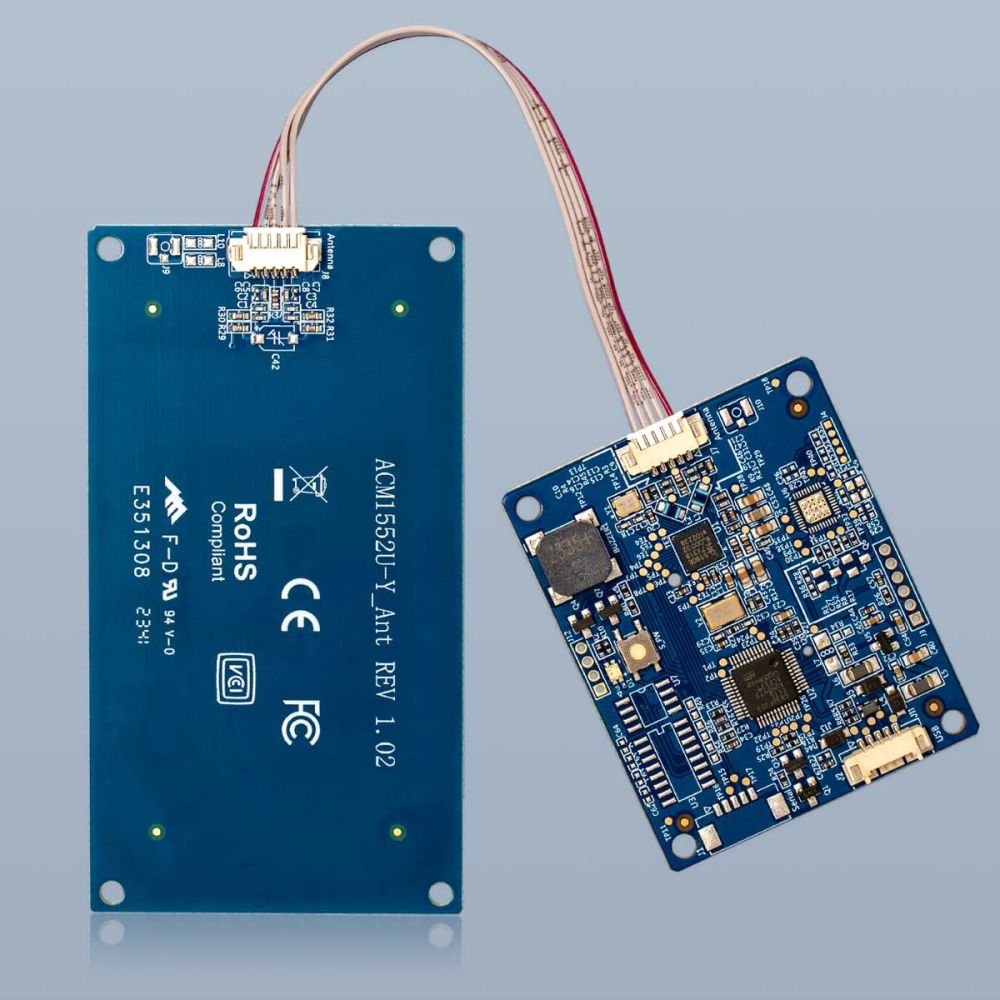

ACS ACM1552U-Y3 NFC USB Reader Module with Detachable Antenna

A USB connected, NFC module with a detachable antenna that supports reading/writing NFC tags, peer-to-peer and card emulation A USB-connected, NFC module with a detachable antenna that supports reading/writing NFC tags, keyboard emulation and card emulation; supports Type 1 - 5 NFC tags; used for integration into embedded systems.
  • Quantity Unit Price
  • 200+

The ACM1552U-Y3 USB NFC Reader Module with Detachable Antenna Board was developed based on the 13.56 MHz contactless technology. It can access contactless cards and devices following the ISO 14443, ISO 15693, and ISO 18092 standards. This smart card reader module is designed for fast and easy integration into embedded systems.

ACM1552U-Y3 is a CCID & PC/SC compliant reader, utilizing high-speed communication for contactless cards at a maximum of 848 kbps, making it suitable for highly demanding applications. It supports three modes: smart card reader/writer, keyboard emulation, and card emulation, making it a powerful all-in-one device that is cost-effective and flexible for many smart card applications.

ACM1552U-Y3 comes with a detachable antenna and an optional USB cable, allowing it to be the perfect front-end interface module for NFC transaction applications, including vending machine payment systems, kiosks, gaming machines, and other integrated systems.

Key Features

  • Support various contactless card types
    • ISO 14443 Type A & B (T=CL)
    • ISO 15693
    • ISO 18092-compliant NFC tags
    • MIFARE Classic®, MIFARE® Mini, MIFARE Ultralight® (T=CL), FeliCa, and Topaz Card
  • Support various NFC modes
    • Card Reader/Writer
    • Card Emulation
    • Keyboard Emulation
  • Security
    • 1 x ISO 7816 Standard SAM slot for improved security (Upon Request)
  • Flexible
    • Read/write speed, LED & Buzzer can be programmable
  • Support USB Firmware Upgrade
  • Reliable
    • Certified for international regulations
    • Mean time between failures (MTBF) up to 500k Hours
  • High Compatibility
    • Support for all major operating systems
      • Windows®, Linux®, macOS, AndroidTM
More Information
ManufacturerAdvanced Card Systems
Manufacturer SkuACM1552U-Y3ACSA201
Country of ManufactureHong Kong SAR China
Shipment OriginUnited States, Hong Kong SAR China
Harmonized Tariff Code8471.60.90 (Input or Output Unit)
AvailabilitySpecial Order
Lead TimeImmediate
Minimum Order Quantity200
DimensionsReader: 45.0 mm (L) x 55.0 mm (W) x 5.1 mm (H); Antenna: 49.5 mm (L) x 91.0 mm (W) x 5.1 mm (H)
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
ComplianceCE, FCC, REACH, RoHS 2
ConnectionUSB 2.0 (Type A)
FeaturesBuzzer, Firmware Upgradable, Lights, NFC
NFC CertificationNFC Forum
NFC ModeCard Emulation, Keyboard Emulation, Tag Reader/Writer
NFC StandardsISO 14443 Type A, ISO 14443 Type B, ISO 14443A-3 , ISO 15693, ISO 18092, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5
Operating SystemAndroid, Linux, Mac, Windows
Operating Temperature0° C to 60° C
Shelf Life10+ Years @ 23° C, 50% RH
Weight (kg)0.026600
