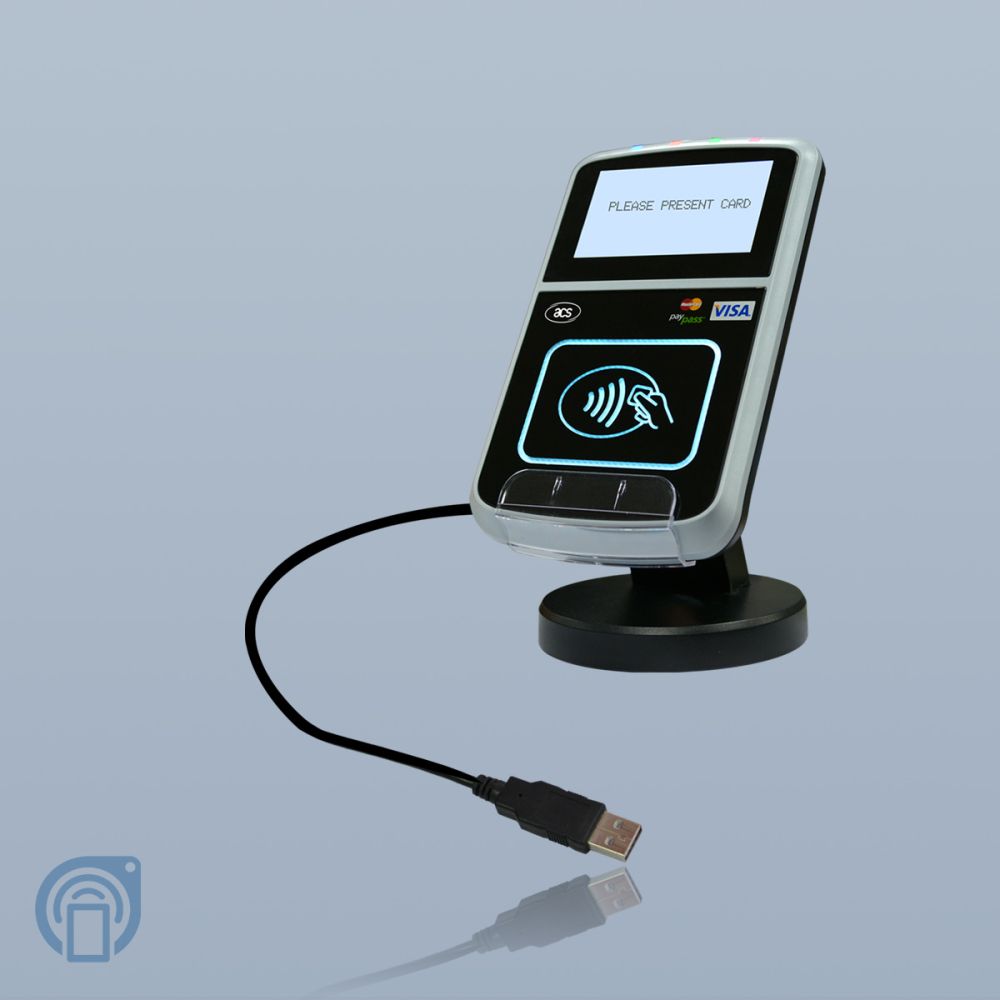

ACS ACR123U NFC Payment Terminal

Product | Reader/Writer |
---|---|
Manufacturer | Advanced Card Systems |
Manufacturer Sku | ACR123U-A1ACSA301F |
Country of Manufacture | Hong Kong SAR China |
Shipment Origin | Hong Kong SAR China |
Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
Availability | Special Order |
Custom Stock Status | Custom Order |
Lead Time | 1 - 7 Days |
Minimum Order Quantity | 1 |
Color | Black |
Dimensions | 100.0 mm (L) x 177.4 mm (W) x 94.5 mm (H) |
Tag Technology | NFC |
Frequency | 13.56 MHz (NFC) |
Compliance | CE, FCC, REACH, RoHS 2 |
Connection | USB 2.0 (Type A) |
Features | Buzzer, Display, Firmware Upgradable, Lights, NFC, SAM Slot, Stand |
Power | USB |
NFC Certification | EMV Level 1, EMV Level 2 |
NFC Mode | Payment, Tag Reader/Writer |
NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 7816, MIFARE, NFC Forum - Type 2 |
Operating System | Android, Linux, Mac, Windows |
Operating Temperature | 0° C to 50° C |
Software | American Express ExpressPay, Apple Pay, MasterCard PayPass, Visa payWave |
Shelf Life | 10+ Years @ 23° C, 50% RH |
Weight (kg) | 0.5060 |
The ACR123U is the USB version of the ACR123S, a cost-effective, flexible and intelligent contactless reader. It can be integrated to existing (Point-of-Sale) terminals or cash registers, to offer the convenience of a cashless payment system. The ACR123U speeds up movement in checkout counters, by enabling customers to complete payments by simply tapping their cards.
The ACR123U is equipped with a large graphical LCD that allows merchants to display messages, as well as a large tapping area with backlight, which guides customers in carrying out their payment transactions. Developed based on 13.56 MHz contactless (RFID) technology, it supports any contactless card following the ISO 14443-4 standard. It is also equipped with a large graphical LCD, as well as a large user-controllable tapping area with backlight.
Features
- USB interface for Data Communication and power supply
- ARM 32-bit CortexTM-M3 Processor
- Smart Card Reader:
- Read/Write speed of up to 848 kbps
- Built-in antenna for contactless card access, with card reading distance of up to 50 mm (depending on tag type)
- Support for ISO 14443 Part 4 Type A and B cards and MIFARE series
- Built-in anti-collision feature
- Three ISO 7816-compliant SAM slots
- Built-in Peripherals:
- 16 alphanumeric characters x 8 lines Graphical LCD (128 x 64 pixels)
- Four user-controllable LEDs (Blue, Yellow, Green, and Red)
- User-controllable tapping region backlight (Red, Green and Blue)
- User-controllable speaker (Audio tone indication)
