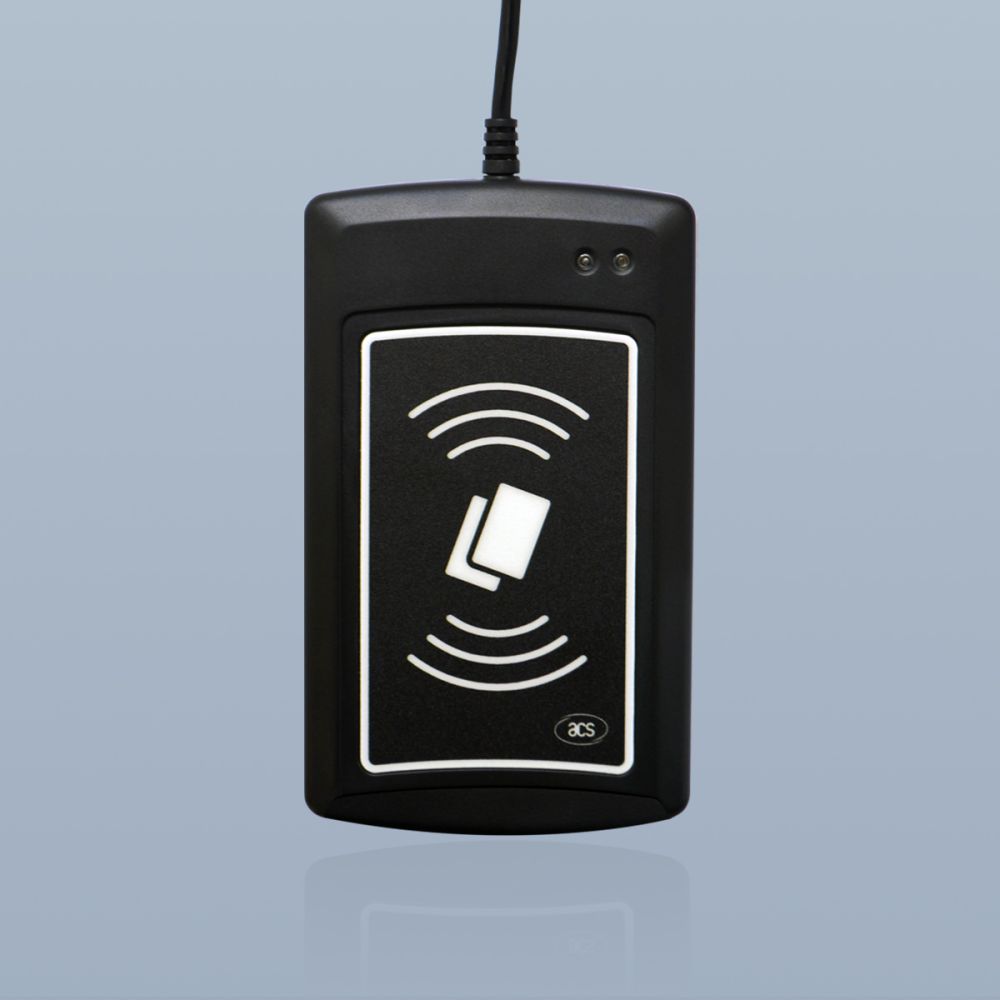

ACS ACR1281U-C2 NFC Tag UID Reader

A black USB connected desktop NFC device which reads the NFC chip's UID to the connected computer's focused input via HID keyboard emulation; does not read or write user memory. Supports Type 1 - 4 NFC tag types; does not support Type 5. Built-in anti-collision feature ensures only one tag at a time is read.
SKU
JRY6XN3D7R
  • Quantity Unit Price
  • 100+
  • 50 $36.01
  • 25 $37.33
  • 10 $37.79
  • 1 $38.26

ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.

When presented with a contactless card (such as a MIFARE card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.

The ACR1281U-C2 only reads the NFC tag's UID, it can not read or write to user memory.

Features

  • USB 2.0 Full Speed Interface
  • USB HID Keyboard Class
  • Contactless Card Support:
    • Read/write speed of up to 848 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Part 4 Type A and B cards and MIFARE series
    • Built-in anti-collision feature (only one tag is accessed at any time)
  • USB Firmware Upgradability

Videos

More Information
ProductReader/Writer
ManufacturerAdvanced Card Systems
Manufacturer SkuACR1281U-C2ACSAB16
Country of ManufactureHong Kong SAR China
Shipment OriginUnited States, Canada
Harmonized Tariff Code8471.60.90 (Input or Output Unit)
AvailabilityNormally Stocked
Lead TimeImmediate
Minimum Order Quantity1
ColorBlack
Dimensions72 mm (L) x 120 mm (W) x 20 mm (H)
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
ComplianceCE, FCC, RoHS 2
ConnectionUSB 2.0 (Type A)
FeaturesBuzzer, Firmware Upgradable, Lights, NFC
PowerUSB
NFC ModeKeyboard Emulation, UID Reader
NFC StandardsISO 14443 Type A, MIFARE, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4
Operating SystemLinux, Windows
Operating Temperature0° C to 50° C
Shelf Life10+ Years @ 23° C, 50% RH
Weight (kg)0.140000
