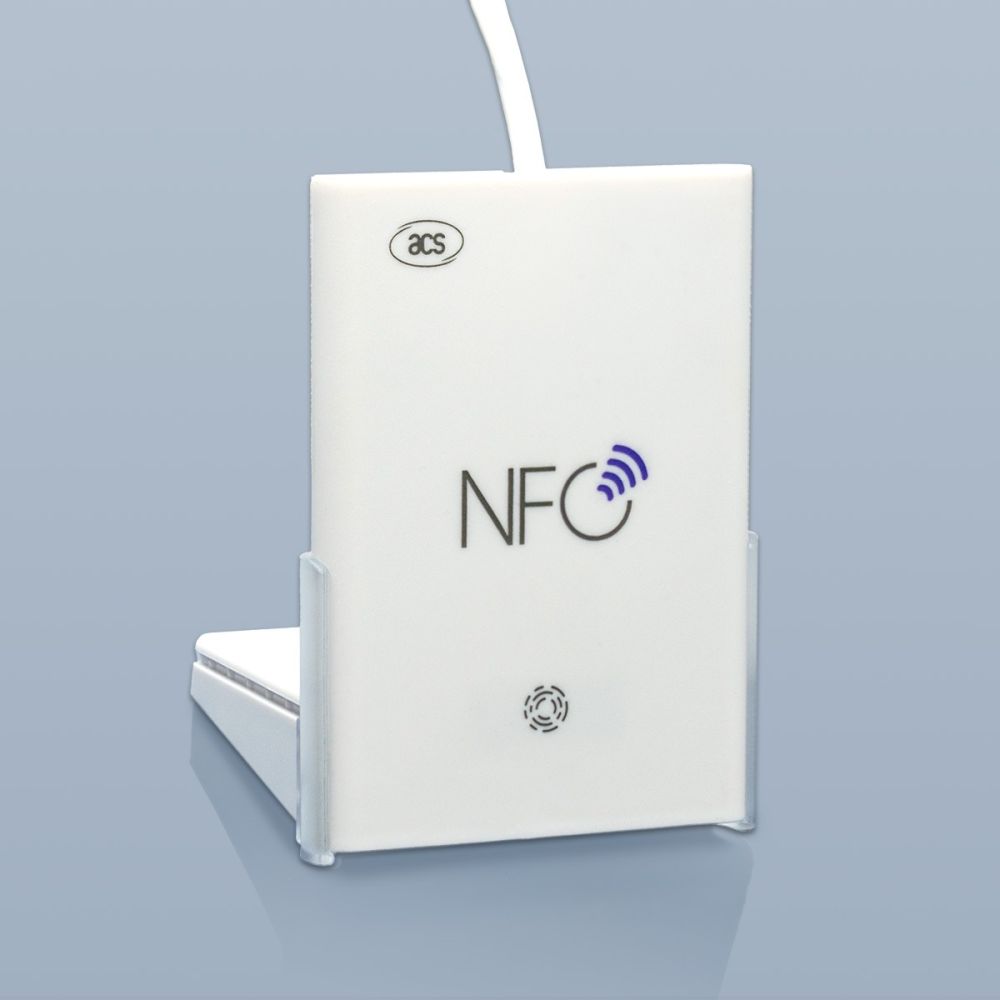

ACS ACR1552U-A2 NFC USB AquaGuard Reader
- Quantity Unit Price
- 300+
- 150 $50.54
- 50 $56.58
- 10 $67.90
- 1 $70.73
| Product | Reader/Writer |
|---|---|
| Manufacturer | Advanced Card Systems |
| Manufacturer Sku | ACR1552U-A2ACSV500 |
| Country of Manufacture | Vietnam |
| Shipment Origin | United States, Canada |
| Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
| Availability | Normally Stocked |
| Lead Time | Immediate |
| Minimum Order Quantity | 1 |
| Color | White |
| Dimensions | 60.0 mm (L) x 85.0 mm (W) x 9.5 mm (H) |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Compliance | CE, FCC, IP67, REACH, RoHS 2 |
| Connection | USB 2.0 (Type A) |
| Features | Buzzer, Firmware Upgradable, Lights, NFC, Stand |
| Power | USB |
| NFC Certification | NFC Forum |
| NFC Mode | Card Emulation, Keyboard Emulation, Tag Reader/Writer |
| NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 18092, ISO 7816, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4 |
| Operating System | Android, Linux, Mac, Windows |
| Operating Temperature | 0° C to 60° C |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| Weight (kg) | 0.067000 |
Files relating to Store products, GoToTags software and general Connected Things technology can be downloaded from the public GoToTags GitLab project.
- Artwork Templates – premade artwork templates for custom-printed products
- Encoding Data – files to provide data for tag encoding services
- NFC – technical specifications for NFC chip types, reader, NDEF, ...
- UHF RFID – technical specifications for UHF RFID chip types, readers, ...
- Products – additional information about Store products
If you cannot find the document you are looking for contact us.
The ACR1552U USB‐C NFC Reader features a USB 2.0 full-speed (12 Mbps) CCID-compliant interface and a built-in contactless antenna with up to 70 mm read range (depending on tag). It supports ISO 14443 Type A & B, ISO 15693, ISO 18092 NFC, MIFARE® (T=CL), FeliCa, SRI/SRIX, CTS, Innovatron, Picopass and Topaz, plus extended APDU up to 64 kB.
It offers three NFC modes—Reader/Writer, Card Emulation and Keyboard Emulation—along with PC/SC & CT-API support, RGB LED and buzzer control, and USB-C firmware upgradability for future enhancements.
Key Features
- USB interface
- USB 2.0 Full Speed (12 Mbps), backward-compatible with USB 3.0
- CCID-compliant
- Non-detachable 1 m Type-A cable
- Contactless reader
- Read/write speed up to 848 kbps
- Built-in anti-collision
- Extended APDU support (max. 64 kB)
- NFC modes
- Smart Card Reader/Writer
- Card Emulation
- Keyboard Emulation
- API support
- PC/SC
- CT-API (via PC/SC wrapper)
- Peripherals
- RGB-color LED (Blue, Green & Red)
- Monotone buzzer
- USB-C firmware upgradeable
Physical Characteristics
- Dimensions (mm)
- Main body: 85.0 L × 60.0 W × 9.0 H
- With optional stand: 86.6 L × 62.6 W × 62.4 H
- Weight
- Main: 67 g ± 5 g
- With stand: 88 g ± 5 g
Contact Smart Card Interface
- Standards: ISO 14443 Type A & B, ISO 15693, ISO 18092 NFC
- Supported cards/tags: MIFARE®, FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz
Certifications & Compliance
- USB CCID, PC/SC, Microsoft® WHQL, J-LIS, IP67
- CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE
Operating System Support
- Windows®
- Linux®
- macOS
- Android™
