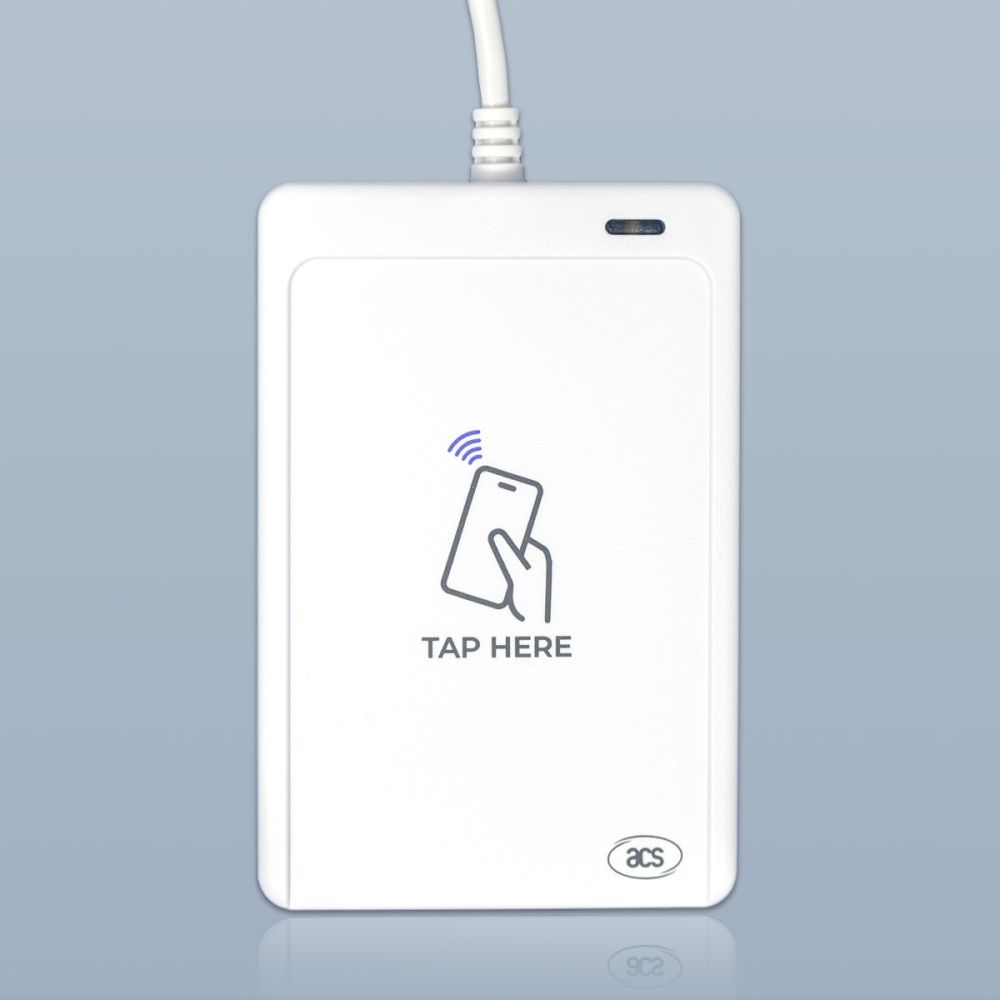

ACS ACR1552U-MW WalletMate II Mobile Wallet NFC Payment Terminal - Apple VAS & Google Smart Tap Certified
- Quantity Unit Price
- 50+
- 20 $95.29
- 1 $102.10
| Product | Reader/Writer |
|---|---|
| Manufacturer | Advanced Card Systems |
| Manufacturer Sku | ACR1552U-MWACSA2001 |
| Country of Manufacture | Hong Kong SAR China |
| Shipment Origin | United States, China |
| Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
| Availability | Normally Stocked |
| Lead Time | Immediate |
| Minimum Order Quantity | 1 |
| Color | White |
| Dimensions | 65.0 mm (L) x 98.0 mm (W) x 13 mm (H) |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Compliance | CE, FCC, REACH, RoHS |
| Connection | USB 2.0 (Type A) |
| Features | Buzzer, Firmware Upgradable, Lights, NFC |
| Power | USB |
| NFC Certification | NFC Forum |
| NFC Mode | Card Emulation, Keyboard Emulation, Tag Reader/Writer |
| NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 18092, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5 |
| Operating System | Android, Linux, Mac, Windows |
| Operating Temperature | 0° C to 60° C |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| Weight (kg) | 0.086000 |
Files relating to Store products, GoToTags software and general Connected Things technology can be downloaded from the public GoToTags GitLab project.
- Artwork Templates – premade artwork templates for custom-printed products
- Encoding Data – files to provide data for tag encoding services
- NFC – technical specifications for NFC chip types, reader, NDEF, ...
- UHF RFID – technical specifications for UHF RFID chip types, readers, ...
- Products – additional information about Store products
If you cannot find the document you are looking for contact us.
The WalletMate II is an NFC reader designed to enhance smartphone wallet applications. Certified for Apple VAS and Google Smart Tap, it supports virtual passes such as loyalty cards, tickets, and staff/student IDs across iOS and Android for a smooth, card‑free tap‑to‑go experience. With merchant‑specific IDs via VAS, terminals can select targeted wallet passes. The reader is CCID & PC/SC compliant and offers high‑speed contactless communication up to 848 kbps, operating in Reader/Writer, Keyboard Emulation, and Card Emulation modes.
Key Features
- Supported standards & tags
- ISO 14443 Type A & B
- ISO 15693
- ISO 18092 NFC
- MIFARE Classic®, MIFARE DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa
- NFC Tags; SRI/SRIX, CTS, Innovatron, Picopass, Topaz
- Mobile wallet certifications
- Apple VAS & Google Smart Tap certified
- Supports ECP 1.0 and ECP 2.0
- Merchant private key (LTPK) stored inside secure element
- NFC modes
- Smart Card Reader/Writer
- Keyboard Emulation
- Card Emulation
- Performance & reliability
- Read/write speed up to 848 kbps (ISO 14443); 26 kbps (ISO 15693)
- Built‑in anti‑collision
- Firmware upgradable
- Certified for international regulations; MTBF up to 500,000 hours
- Compatibility
- Works with Windows®, Linux®, macOS®, Android™
Contactless Smart Card Interface
- Operating frequency: 13.56 MHz
- Reading distance: up to 70 mm (depending on tag type)
- Read/write speed: 106 / 212 / 424 / 848 kbps (ISO 14443); 26 kbps (ISO 15693)
- Anti‑collision: Yes
- Supported NFC modes: Reader/Writer, Keyboard Emulation, Card Emulation
SAM Card Interface
- Standard: 1 × ISO 7816 Class A (5V, 3V) standard SIM‑size slot
- Read/write speed: 13.4 kbps – 1,250 kbps
- Clock frequency: 5 MHz (up to 10 MHz upon request)
- Protocols: T=0, T=1
Host Interface
- Protocol: USB CCID
- Connector: USB Type‑A
- Speed: USB 2.0 Full Speed (12 Mbps), compatible with USB 3.0
- Supply voltage: 5 VDC
- Current consumption: Max. 300 mA
- Firmware upgrade: Supported
Physical Characteristics
- Dimensions (L × W × H): Main body 98.0 × 65.0 × 12.8 mm; Antenna 50.0 × 40.0 mm
- Weight: 86 g ± 5 g
- Available color: White
- Cable length: 1 m
Peripherals
- Buzzer: 1 × programmable mono‑tone
- LED: 1 × programmable (Blue & Green)
Operating Conditions
- Temperature: 0 – 60 °C
- Humidity: max 90% (non‑condensing)
- MTBF: 500,000 hours
Certifications & Compliances
- Certifications: Apple VAS, Google Smart Tap, IEC/EN 62368, CE, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQL
- Compliances: USB CCID, PC/SC
Drivers & Support
- Supported OS: Windows®, Linux®, macOS®, Android™
- Warranty: 1 year
