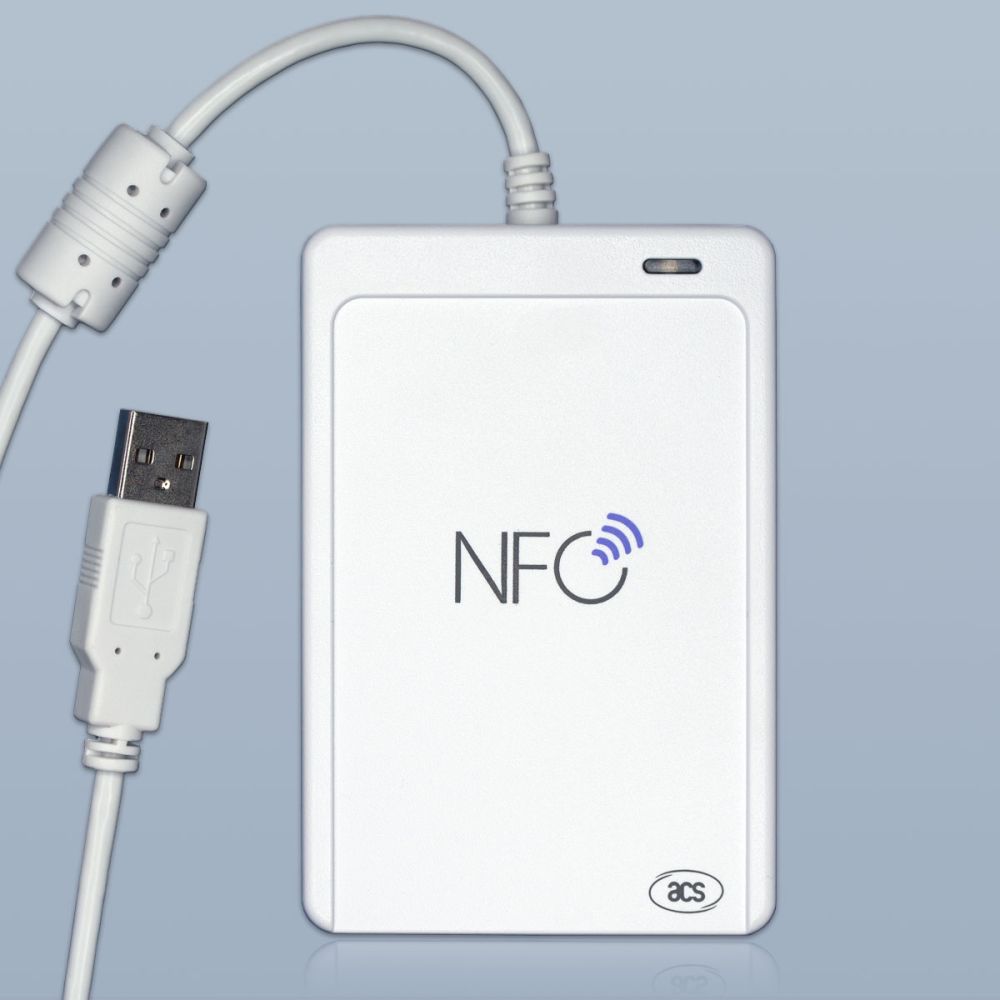

A white USB-connected desktop NFC device that supports reading/writing NFC tags, keyboard emulation and card emulation modes. Supports Type 1 - 5 NFC tag types. Configurable LED indicator and buzzer, upgradeable firmware.
  • Quantity Unit Price
  • 1000+
  • 500
  • 250 $33.39
  • 100 $34.78
  • 50 $35.78
  • 10 $36.83
  • 1 $37.95

The ACR1552U USB NFC Reader is a CCID & PC/SC compliant smart card reader, developed based on 13.56MHz contactless technology. This plug-and-play NFC reader is equipped with a high-speed communication capability of up to 848 kbps and a built-in SAM slot, providing high levels of security and reliability for demanding smart card applications.

One of the feature highlights of the ACR1552 is extensive support for various types of smart cards, including ISO 14443 Type A and B Contactless Cards, MIFARE® Cards, FeliCa, ISO18092 NFC, and ISO 15693 Cards. The reader also has USB firmware upgradability and extended APDU support, making it versatile and cost-effective hardware that can be utilized across various industries, such as finance, healthcare, and government.

Besides, it also offers intelligent support for three modes of NFC features, namely reader/writer, card emulation, and keyboard emulation, making it an ideal option for NFC applications, for example, advertising and marketing campaigns with smart posters or URL marketing.

Overall, the ACR1552U USB NFC Reader is a highly capable and adaptable smart card reader that provides a multitude of advanced features and capabilities.

Key Features

  • Support various types of contactless card type
    • ISO 14443 Type A & B Parts 1-4
    • ISO 15693
    • ISO 18092 NFC
    • MIFARE® (T=CL), FeliCa,
    • SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
  • Support various NFC modes
    • NFC Reader/Writer
    • Card Emulation
    • Keyboard Emulation
  • Security
    • 1 x ISO 7816 Standard SAM slot for improved security
  • Flexible
    • Read/write speed, LED & Buzzer can be programmable
  • Support USB Firmware Upgrade
  • Reliable
    • Certified for international regulations
    • Mean time between failures (MTBF) up to 500k Hours
  • Compatibility
    • Support for all major operating systems
      • Windows®, Linux®, macOS, Android™
More Information
ManufacturerAdvanced Card Systems
Manufacturer SkuACR1552U-M1
Country of ManufactureHong Kong SAR China
Shipment OriginUnited States, Canada
Harmonized Tariff Code8471.60.90 (Input or Output Unit)
AvailabilityNormally Stocked
Lead TimeImmediate
Minimum Order Quantity1
Dimensions65.0 mm (L) x 98.0 mm (W) x 12.8 mm (H)
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
ComplianceCE, FCC, REACH, RoHS 2
ConnectionUSB 2.0 (Type A)
FeaturesBuzzer, Firmware Upgradable, Lights, NFC, SAM Slot
NFC CertificationNFC Forum
NFC ModeCard Emulation, Keyboard Emulation, Tag Reader/Writer
NFC StandardsISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 18092, ISO 7816, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5
Operating SystemAndroid, Linux, Mac, Windows
Operating Temperature0° C to 60° C
Shelf Life10+ Years @ 23° C, 50% RH
Weight (kg)0.079000
