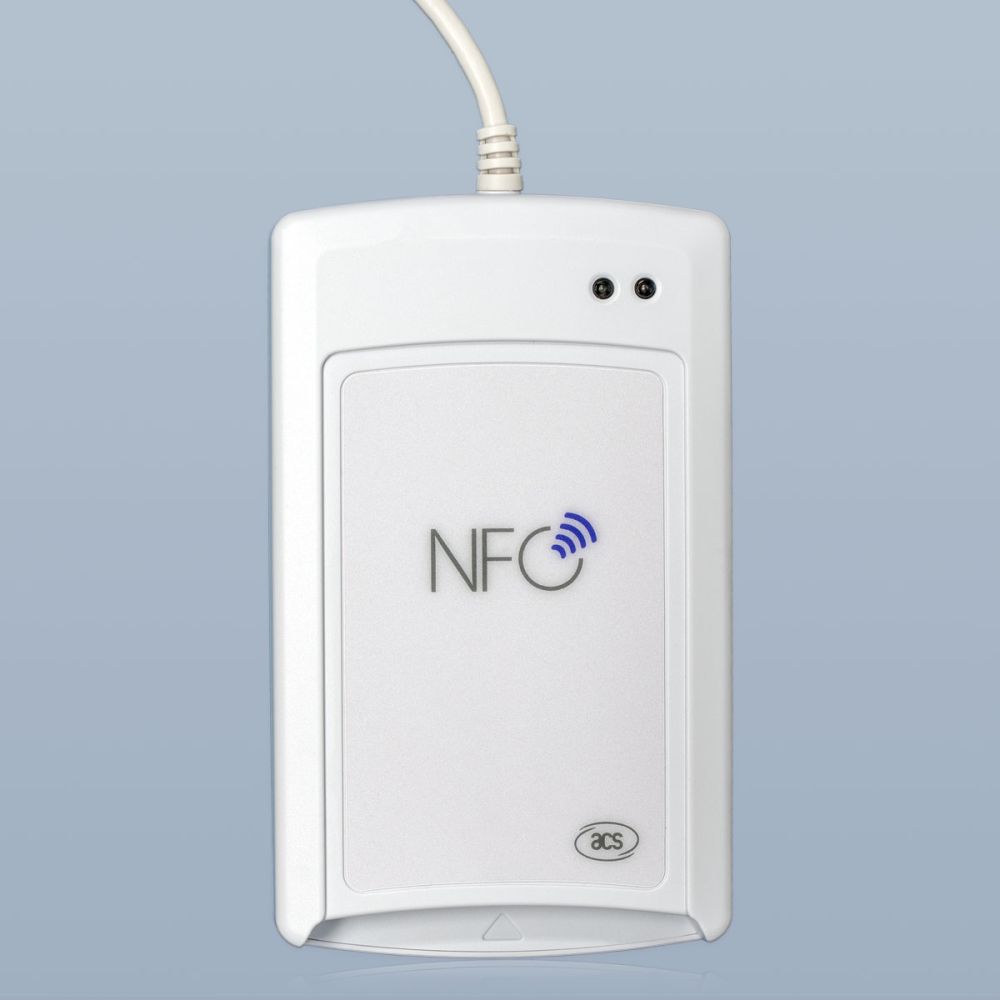

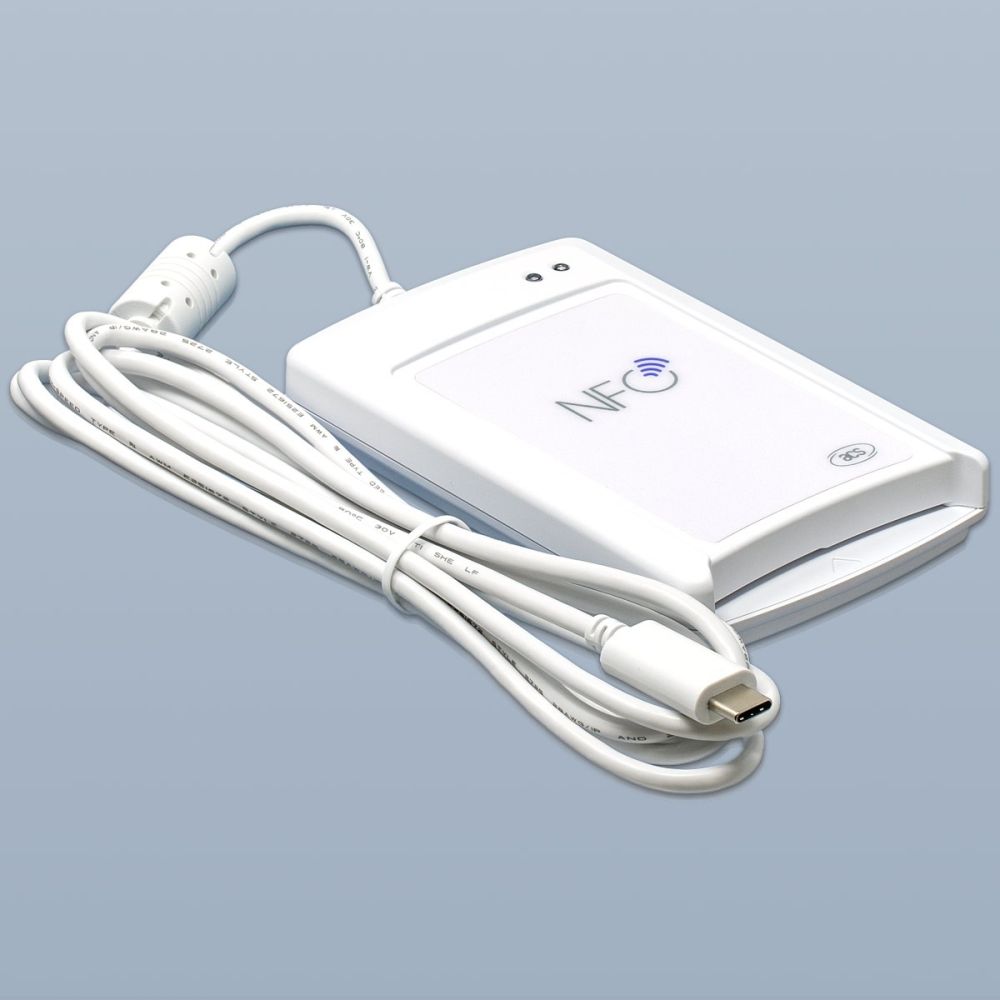

ACS ACR1581U-CF DualBoost III USB-C Dual Interface Reader
- Quantity Unit Price
- 50+
- 10 $44.43
- 1 $45.70
| Product | Reader/Writer |
|---|---|
| Manufacturer | Advanced Card Systems |
| Manufacturer Sku | ACR1581U-CF |
| Country of Manufacture | Hong Kong SAR China |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8471.60.90 (Input or Output Unit) |
| Availability | Limited Supply |
| Lead Time | 1 Week |
| Minimum Order Quantity | 1 |
| Color | White |
| Dimensions | 72 mm (L) x 120.5 mm (W) x 20.4 mm (H) |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Compliance | CE, FCC, REACH, RoHS |
| Connection | USB 2.0 (Type A) |
| Features | Buzzer, Firmware Upgradable, Lights, NFC, SAM Slot |
| Power | USB |
| NFC Mode | Tag Reader/Writer |
| NFC Standards | ISO 14443 Type A, ISO 14443 Type B, ISO 15693, ISO 7816, MIFARE, FeliCa, PC/SC, NFC Forum - Type 1, NFC Forum - Type 2, NFC Forum - Type 3, NFC Forum - Type 4, NFC Forum - Type 5 |
| Operating System | Android, Linux, Mac, Windows |
| Operating Temperature | 0° C to 60° C |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| Weight (kg) | 0.143000 |
Files relating to Store products, GoToTags software and general Connected Things technology can be downloaded from the public GoToTags GitLab project.
- Artwork Templates – premade artwork templates for custom-printed products
- Encoding Data – files to provide data for tag encoding services
- NFC – technical specifications for NFC chip types, reader, NDEF, ...
- UHF RFID – technical specifications for UHF RFID chip types, readers, ...
- Products – additional information about Store products
If you cannot find the document you are looking for contact us.
The ACR1581U DualBoost III is a highly advanced smart card reader that can work with both contact and contactless smart cards following ISO standards. Its high-speed communication capability of up to 848 kbps and built-in SAM slot provide added security and reliability for demanding smart card applications. The DualBoost III also has intelligent support for keyboard emulation and card emulation, making it versatile and useful for a broad range of smart card applications. Additionally, it has intelligent support for hybrid and combi cards, which can detect when a contactless card has been incorrectly placed in the contact card slot. The device also has USB firmware upgradability, contact memory card support, and extended APDU support, making it flexible and cost-effective for various smart card applications. It is compliant with PC/SC standards, ensuring compatibility with a wide range of smart card systems and applications.
The DualBoost III is a powerful and flexible smart card reader suitable for use in various industries, including finance, healthcare, and government. Its advanced features and versatility make it an ideal choice for demanding smart card applications that require high levels of security and reliability.
Key Features
- Support various type of card type
- Contact Card:
- ISO 7816 Class A, B and C (5V, 3V and 1.8V)
- Memory Card, Microprocessor Card (T=0 or 1)
- Contactless Card:
- ISO 14443 Type A & B (T=CL)
- ISO 15693
- MIFARE® (T=CL), FeliCa, NFC Tags
- SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
- Performance
- Read/Write ISO 14443A/B speed of up to 848 kbps
- Read/Write ISO 15693 speed of up to 26 kbps
- Security
- 1 x ISO 7816 Standard SAM slot for improved security
- Support keyboard emulation and card emulation
- Implement without the need of additional application
- Support USB Firmware Upgrade
- Reliable
- Certified for international regulations
- Mean time between failures (MTBF) up to 500k Hours
- Short Circuit Protection
- Compatibility
- Support for all Windows®, Linux®, macOS, Android™
