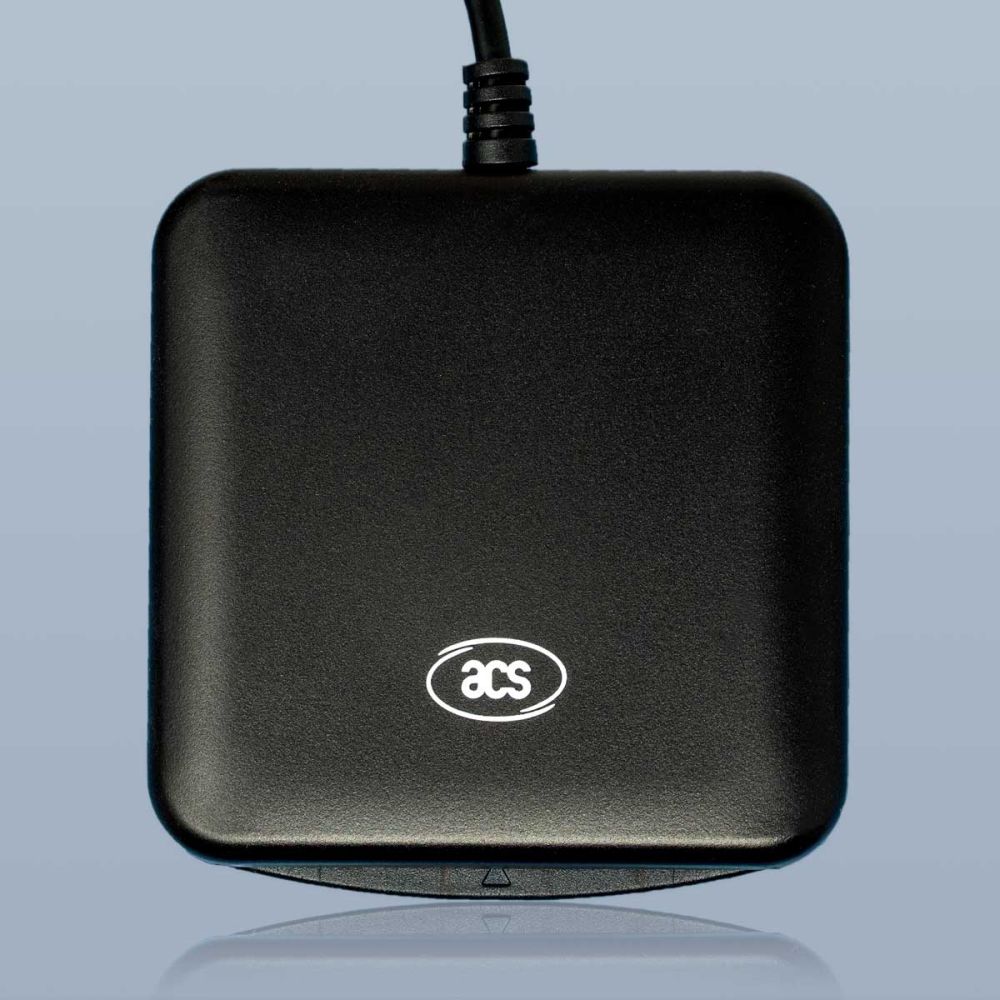

ACS ACR39U-U1 Smart Card Reader

The ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card-based applications.

The ACR39U-U1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards in the market, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions such as PIV application, physical and logical access control, digital signature, and online banking.

It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U-U1 can last for 200,000 card insertion cycles. ACR39U-U1 also has various certifications such as EMV™ Level 1 (Contact) and People’s Bank of China (PBOC), making it the ideal smart card reader for your e-Banking and e-Payment application needs.

The modern design of the ACR39U-U1, with its matte casing, makes it stand out from ordinary smart card readers. It houses a powerful core that can support demanding applications and can be used anytime, anywhere.

The ACR39U-U1 is PC/SC and CCID-compliant, making it easy to install and use, as it is specifically designed to be integrated into any computer-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Mac OS®, and Solaris. In addition, the ACR39U-U1 may now be used on mobile devices running the Android™ platform with versions 3.1 and later.

Features

• USB 2.0 Full Speed Interface
• USB Type A Connector
• CCID Compliance
• Smart Card Reader:
  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
  • Supports CAC (Common Access Card)
  • Supports SIPRNET Card
  • Supports J-LIS Card
  • Supports microprocessor cards with T=0 and T=1 protocol
  • Supports memory cards
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
• Supports Android™ 3.1 and later
• Compliant with the following standards:
  • EN 62368/IEC 62368
  • CE
  • FCC
  • RoHS
  • REACH
  • EMV™ Level 1 (Contact)
  • BIS
  • J-LIS
  • KCC
  • PBOC
  • TAA (USA)
  • UKCA
  • UL
  • VCCI
  • WEEE
  • ISO 7816
  • PC/SC
  • CCID
  • Microsoft® WHQL

Supported Card Types

• MCU cards

The ACR39U-U1 operates with MCU cards following either the T=0 or T=1 protocol. It also works with SIPRNET and CAC cards, making it ideal for US PIV and PKI applications./p>

• Memory-based Smart Cards

  The ACR39U-U1 works with several memory-based smart cards such as:

  • Cards with intelligent 1 KB EEPROM with write-protect function, including:
    • Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528
  • Cards with intelligent 256-byte EEPROM with write-protect function, including:
    • Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542
