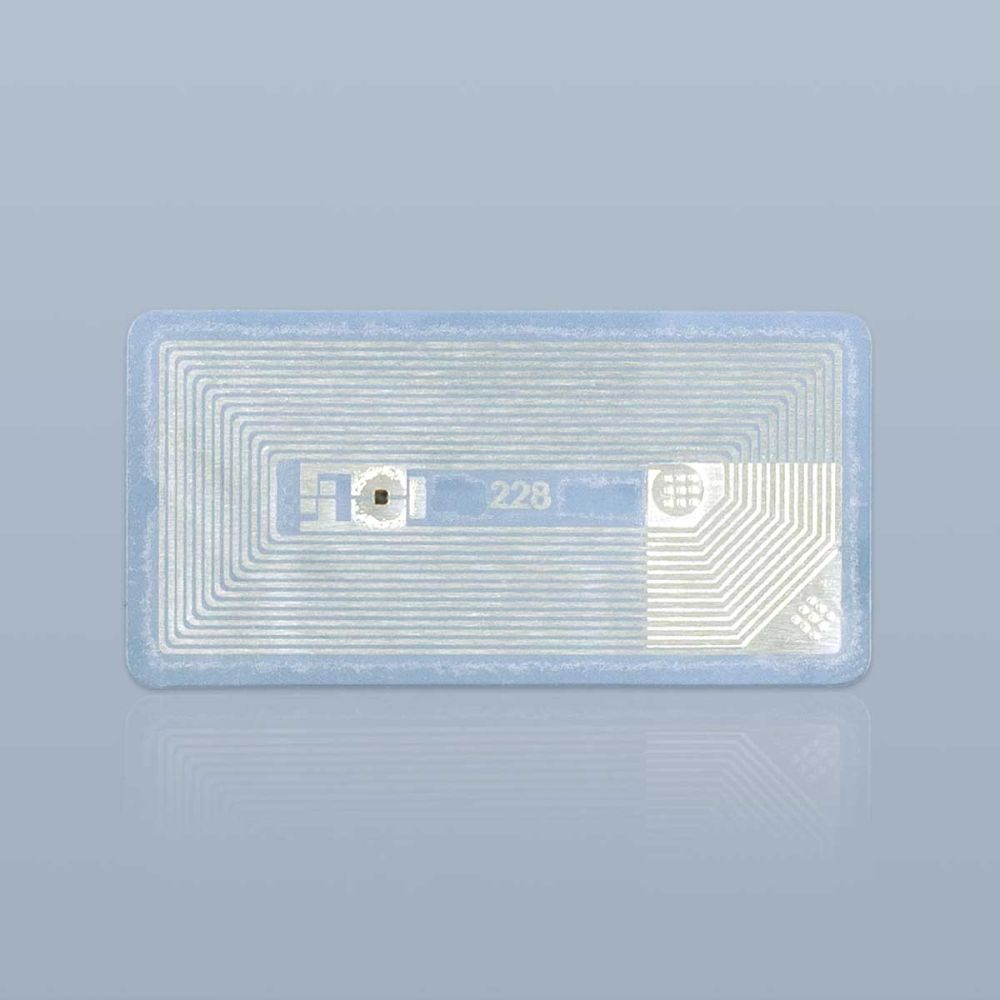

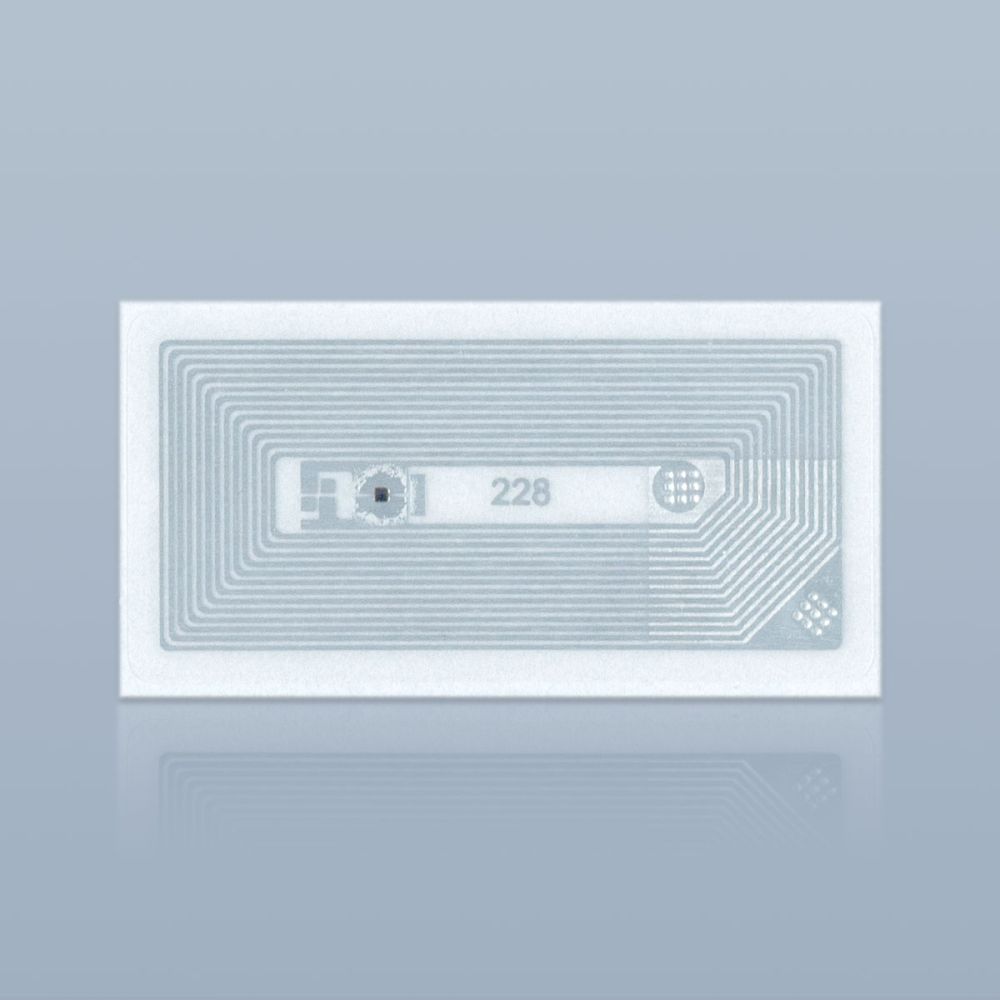

Clear Wet NFC Inlay - ICODE SLIX - 36 x 18 mm Rectangle - NFC Tag
A clear, wet NFC inlay with an NXP ICODE SLIX NFC chip from GoToTags; medium size 36 x 18 mm rectangle, regular adhesive, see-through to antenna, not printable NFC tag.
SKU
53BJS8PHXT
- Quantity Unit Price
- 1000000+
- 100000
- 50000
- 10000
| Product | Inlay |
|---|---|
| Manufacturer | GoToTags |
| Country of Manufacture | China |
| Shipment Origin | China |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 4 Weeks |
| Minimum Order Quantity | 10000 |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | NDEF Formattable |
| Chip | NXP ICODE SLIX |
| UID | 8-byte UID |
| NFC Memory | 112 bytes |
| NFC Standards | ISO 15693, NFC Forum - Type 5 |
| On-Metal | No |
| Operating Temperature | -40° C to 85° C |
| Antenna Dimensions | 33 mm (L) x 15 mm (W) |
| Dimensions | 36 mm (L) x 18 mm (W) x 0.16 mm (H) |
| Shape | Rounded Rectangle |
| Size | Medium |
| Weight (kg) | 1.528000 |
| Color | Clear |
| Finish | Semi-Gloss |
| Attachment | Adhesive |
| Adhesive | Hot Melt |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use, Water Resistant |
| Layout | 1 Wide |
| Media Dimensions | 39 mm (L) x 36 mm (W) x 0.05 mm (H) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Roll Outer Diameter | ≤ 200 mm (⌀) |
| Shelf Life | 1 Year @ 23° C, 50% RH |
