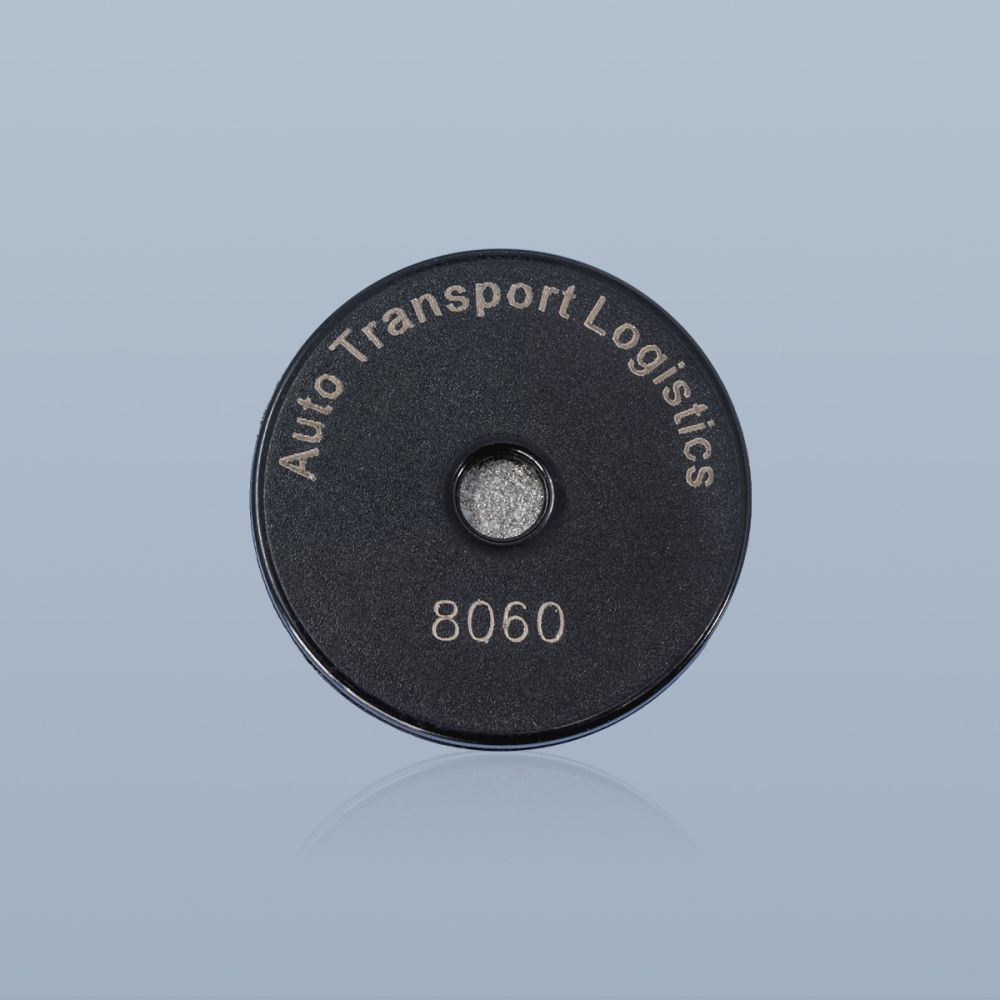

Custom Heavy Duty On-Metal NFC Sticky Token
A customizable NFC ABS or PC token with a selection of circular sizes and a wide range of NFC chip types. Custom NFC token mold sizes range from small to large with or without a center hole. Most NFC chip types are available. Customizations can include logos, letters or numbers in 1 to 2 Pantone colors or engraving, choice of shell color, ferrite layer thickness, adhesive type and more. The heavy-duty waterproof shell fully encases the chip and antenna, sealed via ultrasonic welding for IP67 rated protection. The ferrite layer on the back side of the shell is required for the NFC token to function on metal, electronic or magnetic surfaces. The NFC token has an adhesive layer on the back for mounting on flat surfaces.
SKU
HS5ZKEH29L
- Quantity Unit Price
- 1000000+
- 100000
- 50000
- 10000
- 1000
- 500
GoToTags can make Custom Heavy Duty On-Metal NFC Sticky Tokens in a variety of shapes, sizes and chip types to meet your specific needs. "Request Quote" above and share specific details regarding your project. The GoToTags team will contact you with any questions and quotes will be based on the specific product configuration, quantity, delivery times and other services including encoding and printing that you require.
| Product | Token |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | China |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Custom Made |
| Lead Time | 3 Weeks |
| Minimum Order Quantity | 500 |
| Unit Count | 1 |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| Adhesive | 3M 467MP, 3M 9080A, 3M 9448A |
| Attachment | Adhesive, Hole |
| Compliance | IP67 |
| Delivery Format | Individual |
| Durability | Waterproof, Heavy Duty |
| Hole | 3 mm (⌀) or 5 mm (⌀) |
| Materials | ABS, Adhesive, Copper, Ferrite, IC, Polycarbonate (PC), Silicone Paper Liner |
| NDEF Formatting | Pre NDEF Formatted |
| NFC Certification | NFC Forum |
| NFC Standards | ISO 14443 Type A, NFC Forum - Type 2 |
| On-Metal | Yes |
| Operating Temperature | -40° C to 70° C |
| Print Location | Front |
| Print Method | Digital |
| Effects | Laser Engraving |
| Print Type | Text |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| Stiffness | Rigid |
| Weight (kg) | 0.000600 |
