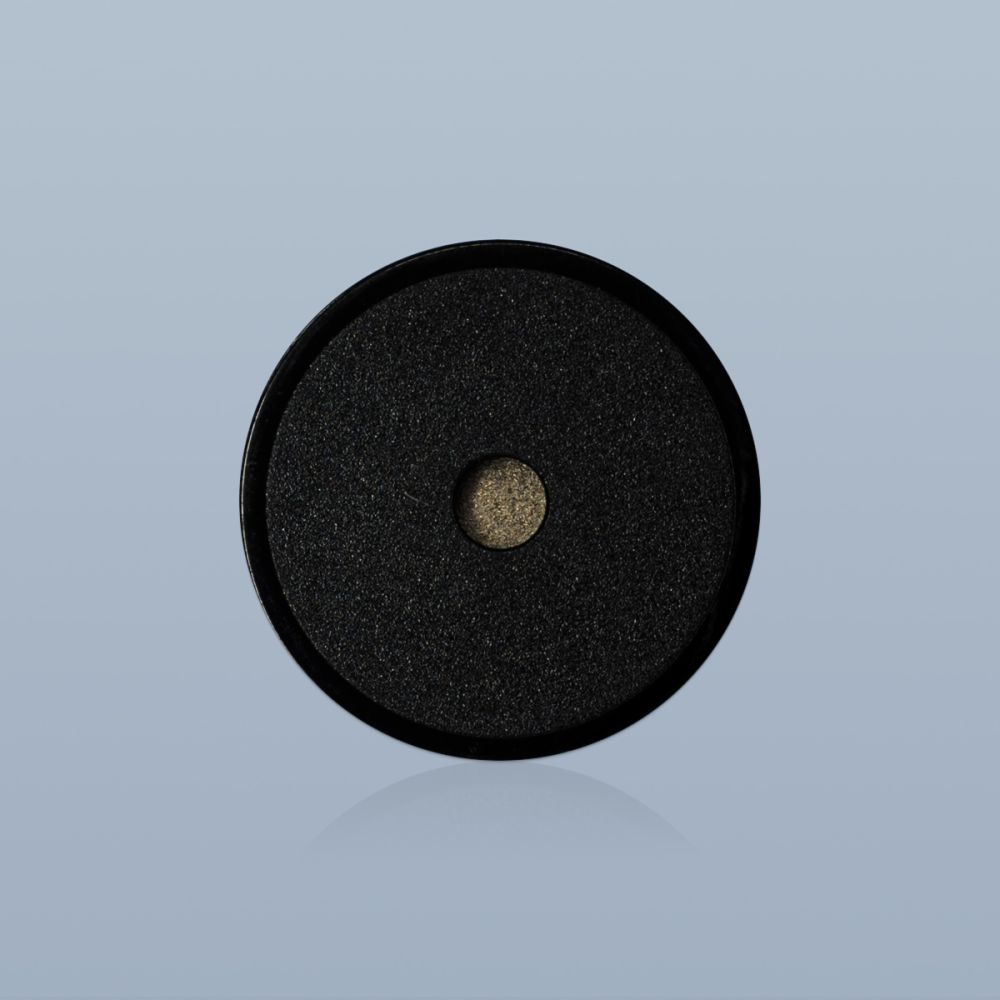

Heavy Duty On-Metal NFC Sticky Token - NTAG213 - 30 mm Circle - 5 mm Hole

A black, medium-sized, round on-metal NFC token with an NXP NTAG213 NFC chip. The heavy duty waterproof polycarbonate shell fully encases the chip and antenna, sealed via ultrasonic welding for IP67 rated protection. The NFC token has a center hole and an adhesive layer on the back for mounting on flat surfaces. The ferrite layer on the back is required for the NFC token to function on metal, electronic or magnetic surfaces.
SKU
H3WBU7HVAE
  • Quantity Unit Price
  • 1000000+
  • 100000
  • 50000 $0.42
  • 10000 $0.46
  • 1000 $0.52
  • 100 $0.57
  • 10 $0.71
More Information
ProductToken
ManufacturerGeneric
Country of ManufactureChina
Shipment OriginUnited States, Canada
Harmonized Tariff Code8523.52.10 (Smart Cards - Unrecorded)
AvailabilityNormally Stocked
Lead TimeImmediate
Minimum Order Quantity10
Standard Packaging30 Unit Sleeve | 12 Sleeves per Box | 20 Boxes per Carton
Unit Count1
ComplianceIP67, REACH, RoHS
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
NFC CertificationNFC Forum
NDEF FormattingPre NDEF Formatted
ChipNXP NTAG213
UID7-byte UID
NFC Memory144 bytes
NFC StandardsISO 14443 Type A, NFC Forum - Type 2
On-MetalYes
Operating Temperature-40° C to 70° C
Antenna Dimensions25 mm (⌀)
Dimensions30 mm (⌀) x 3 mm (H)
ShapeCircle
SizeMedium
Weight (kg)0.006000
ColorBlack
FinishMatte
AttachmentAdhesive, Hole
Hole5 mm (⌀)
Adhesive3M 467MP
MaterialsAdhesive, Copper, Ferrite, IC, Polycarbonate (PC), Silicone Paper Liner
StiffnessRigid
DurabilityWaterproof, Heavy Duty
Delivery FormatIndividual
Shelf Life10+ Years @ 23° C, 50% RH
Supported Print TechnologyLaser Engraving
