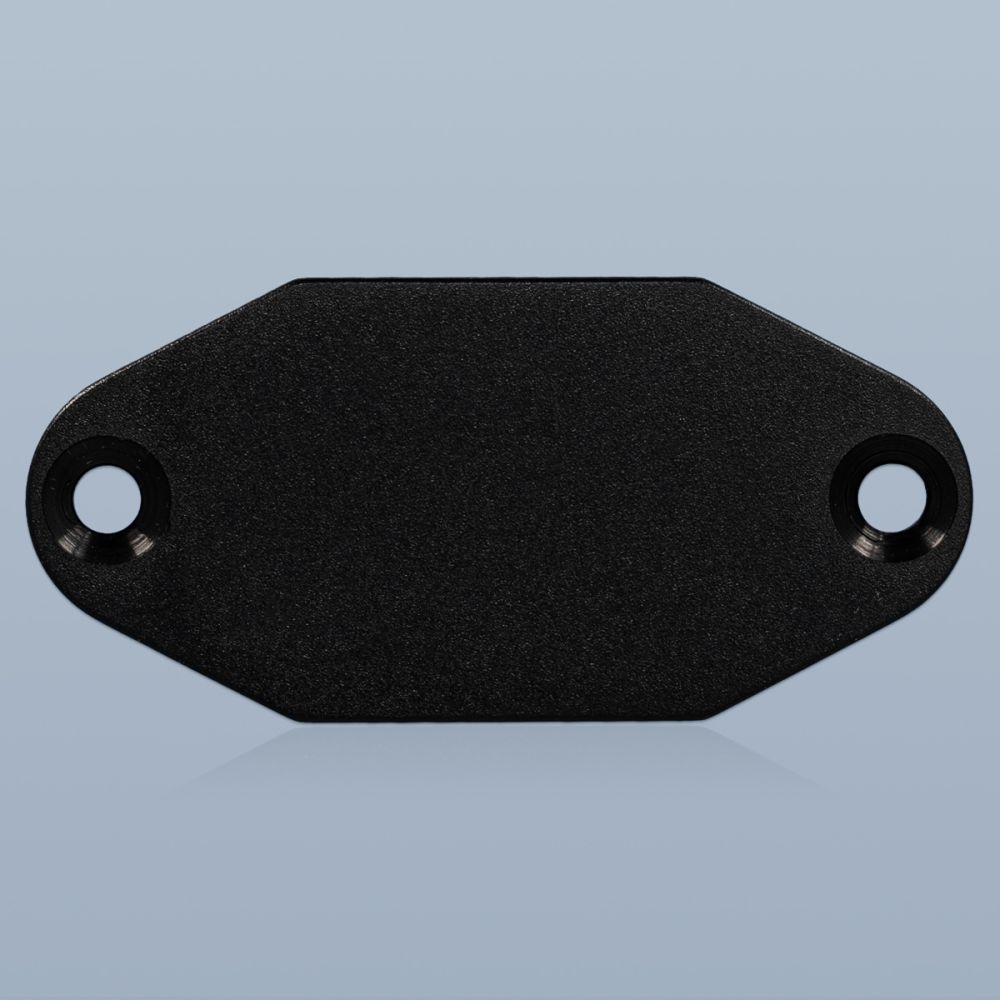

Heavy Duty On-Metal NFC Token - NTAG213 - 70 x 32.5 mm Polygon

A black, large, rectangular on-metal NFC token with an NXP NTAG213 NFC chip. The heavy duty waterproof ABS shell fully encases the chip and antenna, sealed via black epoxy filling for IP68 rated protection. The NFC token has two countersunk holes, one on each end for mounting on flat surfaces. The ferrite layer inside the shell is required for the NFC token to function on metal, electronic or magnetic surfaces.
SKU
KZZ7ZGKK2D
  • Quantity Unit Price
  • 1000000+
  • 100000
  • 50000
  • 10000
  • 1000 $0.90
  • 100 $1.04
  • 10 $1.20
More Information
ProductToken
ManufacturerGeneric
Country of ManufactureChina
Shipment OriginUnited States, China
Harmonized Tariff Code8523.52.10 (Smart Cards - Unrecorded)
AvailabilityNormally Stocked
Lead TimeImmediate
Minimum Order Quantity10
Standard Packaging50 Unit Box
Unit Count1
ComplianceIP68, REACH, RoHS
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
NFC CertificationNFC Forum
NDEF FormattingPre NDEF Formatted
ChipNXP NTAG213
UID7-byte UID
NFC Memory144 bytes
NFC StandardsISO 14443 Type A, NFC Forum - Type 2
On-MetalYes
Operating Temperature-40° C to 70° C
Antenna Dimensions25 mm (⌀)
Dimensions70 mm (L) x 32.5 mm (W) x 8 mm (H)
ShapePolygon
SizeLarge
Weight (kg)0.020000
ColorBlack
FinishMatte
AttachmentHole
Hole2 x 5 mm (Ø)
AdhesiveNone
MaterialsABS, Copper, Epoxy, Ferrite, IC
StiffnessRigid
DurabilityWaterproof, Heavy Duty
Delivery FormatIndividual
Shelf Life10+ Years @ 23° C, 50% RH
Supported Print TechnologyLaser Engraving
