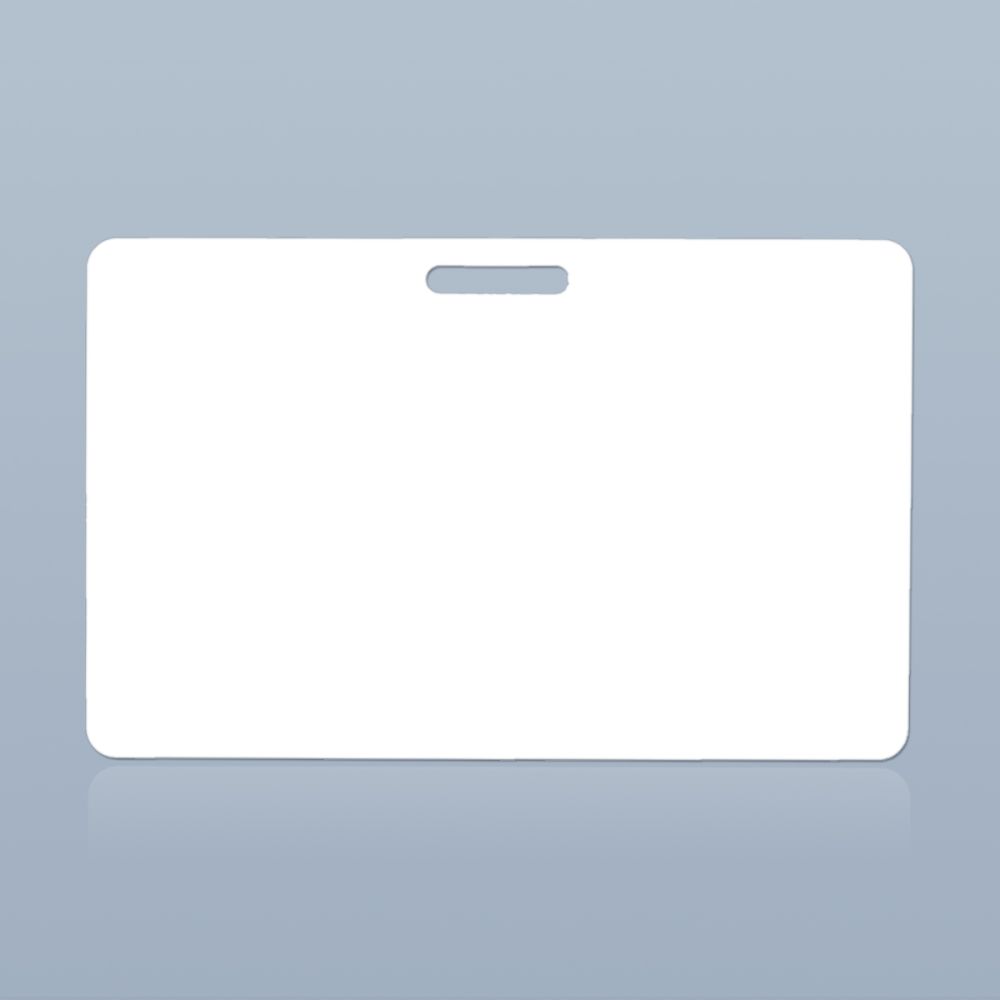

NFC PVC Badge - ST25TN01K - Horizontal
A white NFC PVC badge with an ST ST25TN01K NFC chip. The pre-punched hole on the long side allows the badge to attach to a lanyard or clip. NFC badges are ISO CR80 size but are slightly thicker due to the NFC chip and antenna. Badges with a pre-punched hole on the long side are not printable due to the limitations of card printers. For printability, use vertical badges, cards without a hole or see Custom NFC Cards.
- Quantity Unit Price
- 100 $0.37
- 10 $0.53
|Country of Manufacture||China|
|Shipment Origin||United States, Canada|
|Harmonized Tariff Code||8523.52.10 (Smart Cards - Unrecorded)|
|Minimum Order Quantity||10|
|Standard Packaging||200 Unit Box | 15 Boxes per Carton|
|Frequency||13.56 MHz (NFC)|
|NFC Certification||NFC Forum|
|NDEF Formatting||Pre NDEF Formatted|
|NFC Memory||156 bytes|
|NFC Standards||ISO 14443 Type A, NFC Forum - Type 2|
|Operating Temperature||-25° C to 70° C|
|Antenna Dimensions||60 mm (L) x 40 mm (W)|
|Dimensions||85.5 mm (L) x 54 mm (W) x 0.9 mm (H)|
|Hole||15 mm (L) x 3 mm (W)|
|Materials||Copper, IC, PVC|
|Shelf Life||10+ Years @ 23° C, 50% RH|
|Supported Print Technology||Direct-to-Card, Retransfer, UV|
