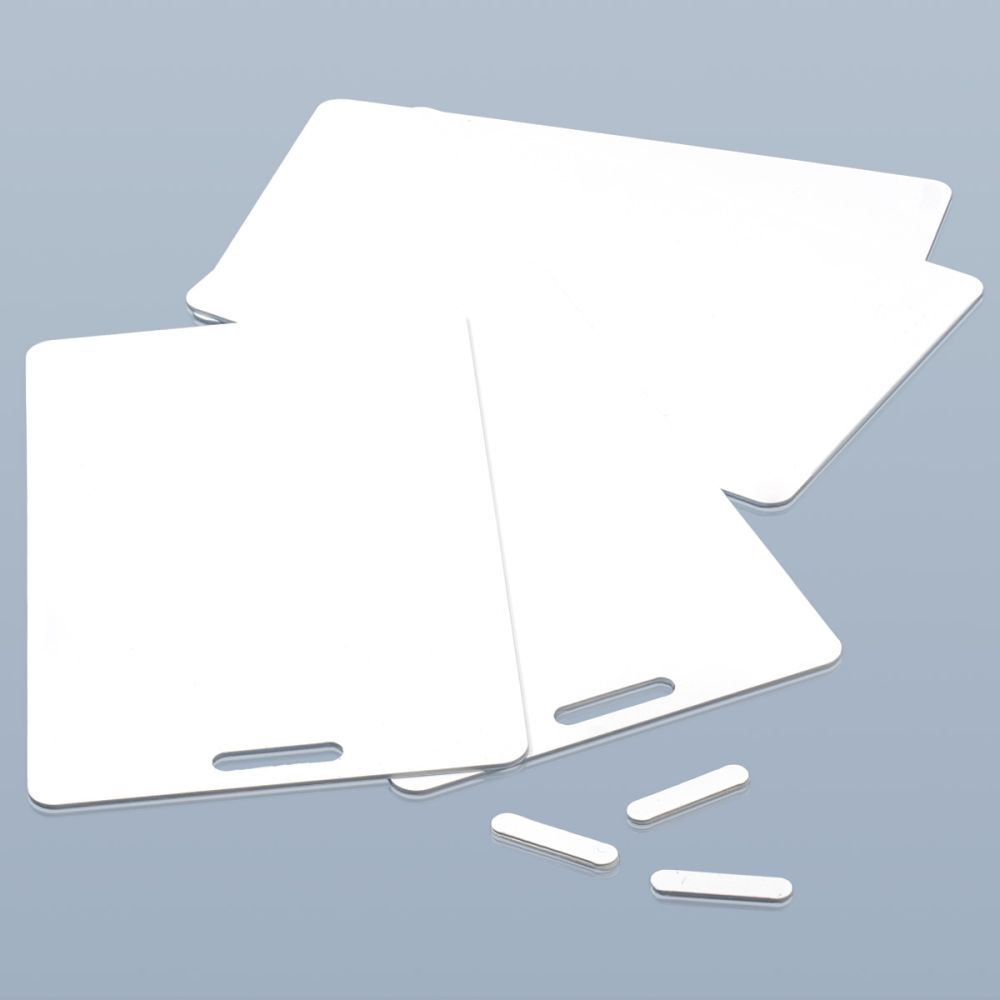

NFC PVC Card - Hole Punchable - NTAG213
A hole-punchable, white NFC PVC card with an NXP NTAG213 NFC chip. It is designed to be printed and then punched to avoid any potential damage to a card printer's print head. When punched on the short side, the badge can be attached to a lanyard or clip. The cards are ISO CR80 size but are slightly thicker due to the NFC chip and antenna.
SKU
4BUZXWA332
- Quantity Unit Price
- 10000+
- 5000
- 1000
- 100
- 10
This product is printable by GoToTags. See Printing tab below for details.
| Product | Card |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Normally Stocked |
| Lead Time | 1 - 7 Days |
| Minimum Order Quantity | 10 |
| Unit Count | 1 |
| Compliance | REACH, RoHS |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | Pre NDEF Formatted |
| Chip | NXP NTAG213 |
| UID | 7-byte UID |
| NFC Memory | 144 bytes |
| NFC Standards | ISO 14443 Type A, NFC Forum - Type 2 |
| On-Metal | No |
| Operating Temperature | -25° C to 70° C |
| Antenna Dimensions | 40 mm (L) x 60 - 70 mm (W) |
| Dimensions | 54 mm (L) x 85.5 mm (W) x 0.84 - 0.86 mm (H) |
| Shape | Rounded Rectangle |
| Size | Large |
| Weight (kg) | 0.006000 |
| Color | White |
| Finish | Glossy |
| Attachment | Hole |
| Hole | Hole punchable to make into a vertical badge with a 15 mm (L) x 3 mm (W) hole. |
| Materials | Copper, IC, PVC |
| Stiffness | Semi-Flexible |
| Durability | Waterproof |
| Delivery Format | Individual |
| Shelf Life | 10+ Years @ 23° C, 50% RH |
| In-House Print Technology Used | Direct-to-Card |
| Supported Print Technology | Direct-to-Card, Retransfer, UV |
