Simple NFC Inlay - ICODE SLIX2 - 38 mm Circle

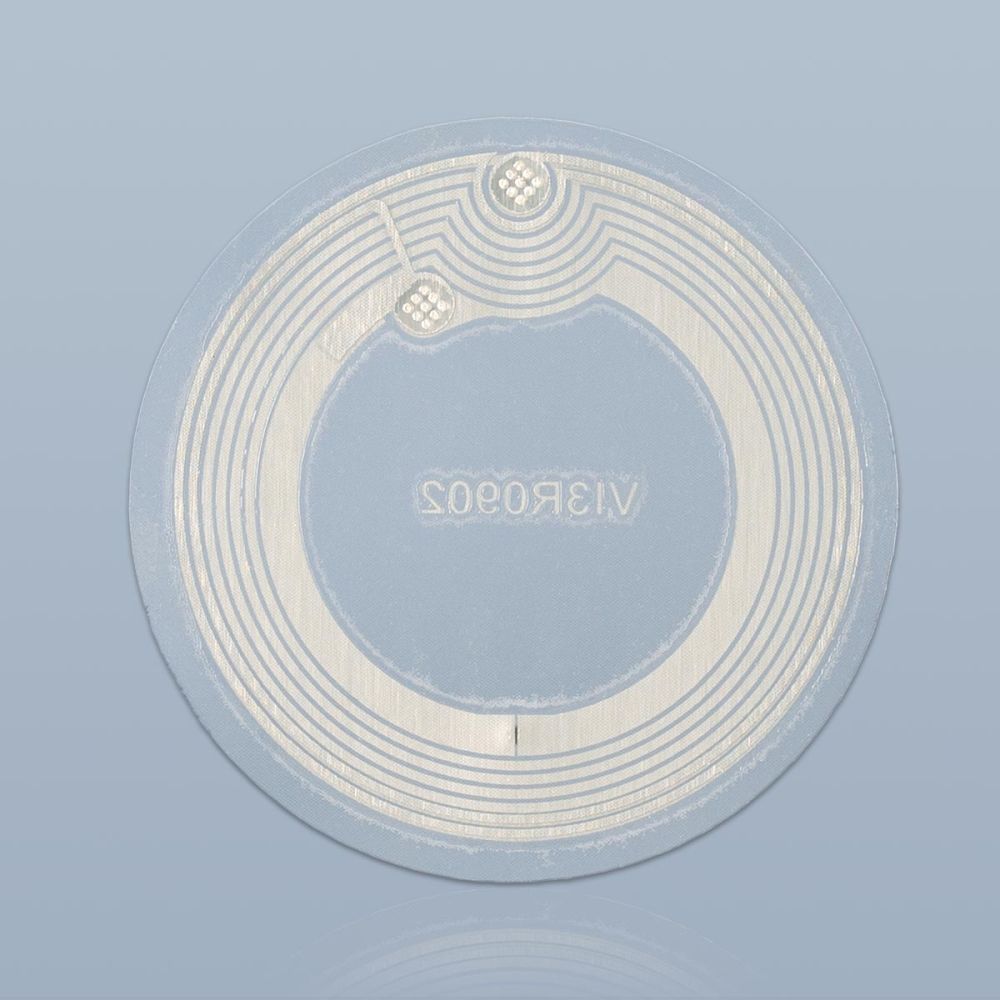

A clear, medium, round NFC inlay with an NXP ICODE SLIX2 NFC chip. The chip and antenna are face down on the liner and surrounded by clear PET. Simple NFC inlays cannot be printed but the surrounding liner could be printed by thermal printers; printing is limited to black letters, numbers and barcodes.
SKU
6XBTE6E9EX
- Quantity Unit Price
- 100000+ $0.19
- 10000 $0.24
- 1000 $0.35
This product is printable by GoToTags. See Printing tab below for details.
| Product | Inlay |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States, China |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 3 Weeks |
| Minimum Order Quantity | 1000 |
| Standard Packaging | 2000 Unit Roll |
| Unit Count | 1 |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | NDEF Formattable |
| Chip | NXP ICODE SLIX2 |
| UID | 8-byte UID |
| NFC Memory | 320 bytes |
| NFC Standards | ISO 15693, NFC Forum - Type 5 |
| On-Metal | No |
| Operating Temperature | -40° C to 85° C |
| Antenna Dimensions | 34 mm (⌀) |
| Dimensions | 38 mm (⌀) x 0.2 mm (H) |
| Shape | Circle |
| Size | Medium |
| Color | Clear |
| Finish | Glossy |
| Attachment | Adhesive |
| Adhesive | Generic Oil Glue |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 45 mm (L) x 43 mm (W) |
| Label Cut | Die Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Individual, Strip, Fanfold, Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Roll Outer Diameter | ≤ 170 mm (⌀) |
| Shelf Life | 1 Year @ 23° C, 50% RH |
| In-House Print Technology Used | Thermal Transfer |
| Supported Print Technology | Thermal Transfer |
