Simple NFC Inlay - MIFARE Classic EV1 1K (MF1S503yX) - 17 mm Circle - NFC Tag

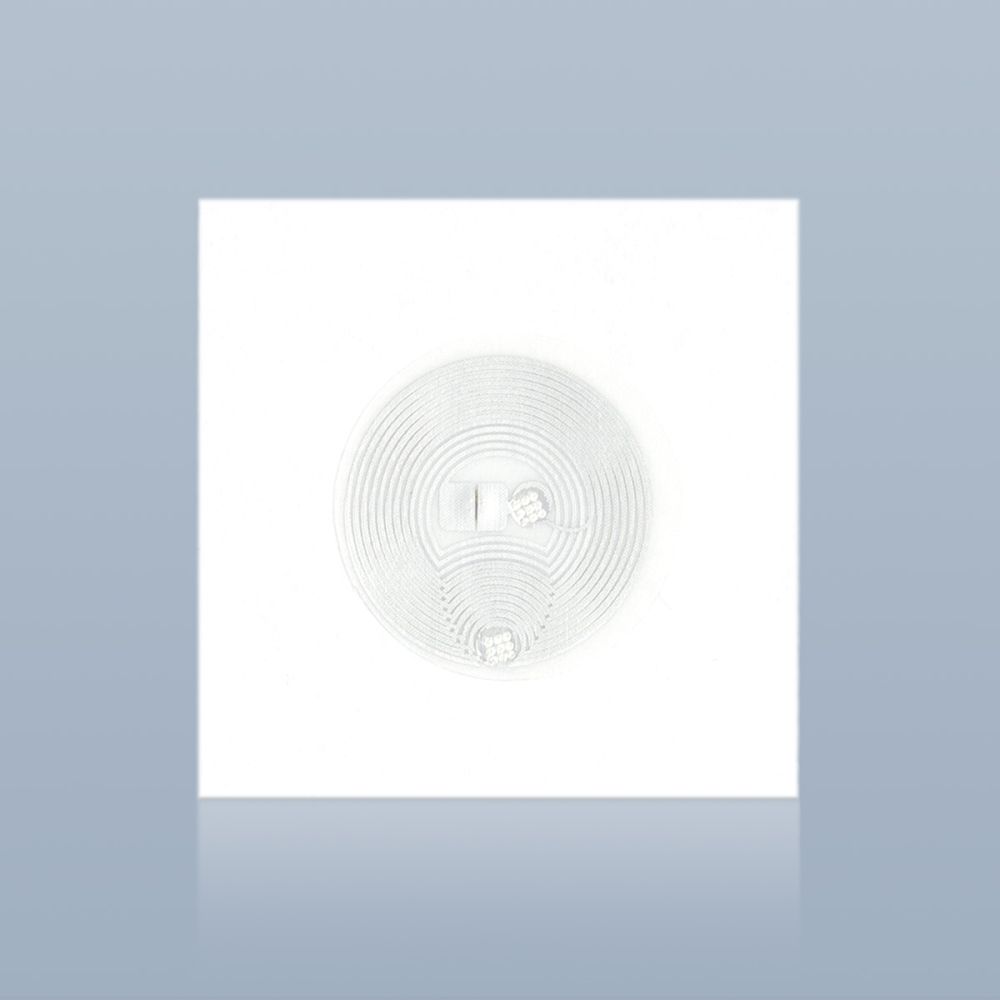

A clear, small, round NFC inlay with a MIFARE Classic EV1 1K (MF1S503yX) NFC chip with a 4-byte NUID. The chip and antenna are face down on the adhesive with the surrounding PET facing up. Simple NFC inlays are thin and low-cost due to the absence of an additional surface layer. The antenna can be felt if a finger is run across the surface of the inlay.
SKU
93PMYP89SE
- Quantity Unit Price
- 50000+
- 10000
- 1000 $0.85
- 100 $1.00
- 10 $1.40
| Product | Inlay |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States, China |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Limited Supply |
| Lead Time | Immediate |
| Minimum Order Quantity | 10 |
| Standard Packaging | 3000 Unit Roll |
| Unit Count | 1 |
| Compliance | REACH, RoHS |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | Pre NDEF Formatted |
| Chip | NXP MIFARE Classic EV1 1K |
| UID | 4-byte NUID |
| NFC Memory | 1024 bytes |
| NFC Standards | ISO 14443 Type A, MIFARE |
| On-Metal | No |
| Operating Temperature | -25° C to 70° C |
| Antenna Dimensions | 15.25 mm (⌀) |
| Dimensions | 17 mm (⌀) x 0.20 mm (H) |
| Shape | Circle |
| Size | Small |
| Weight (kg) | 0.003000 |
| Color | Clear |
| Finish | Glossy |
| Attachment | Adhesive |
| Adhesive | Acrylic |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 35 mm (L) x 30 mm (W) x 0.1 mm (H) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Delivery Format | Individual, Strip, Fanfold, Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Shelf Life | 1 Year @ 23° C, 50% RH |
