Simple NFC Inlay - NTAG213 - 18 mm Circle

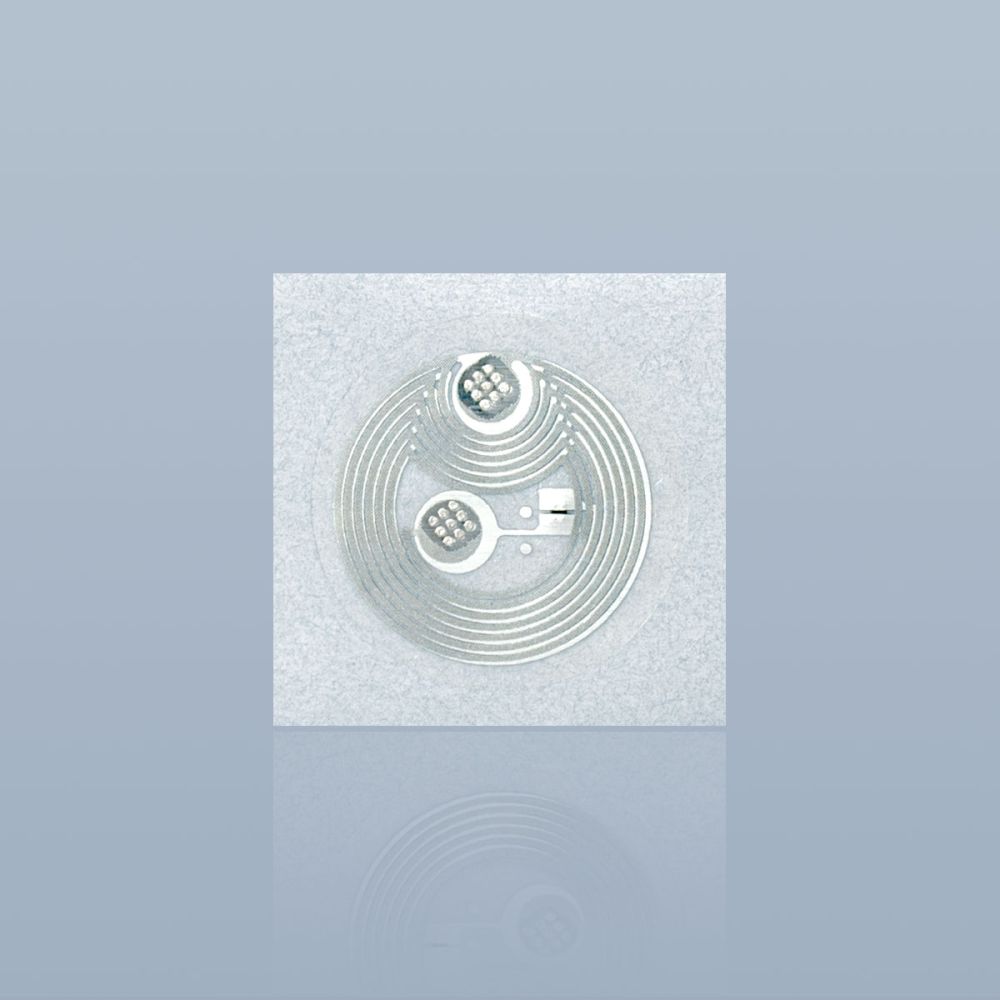

A clear, tiny, round NFC inlay with an NXP NTAG213 NFC chip. The chip and antenna are face down on the adhesive with the surrounding PET facing up. Simple NFC inlays are thin and low cost due to the absence of an additional surface layer. The antenna can be felt if a finger is run across the surface of the inlay.
SKU
BGRDUHNVRL
- Quantity Unit Price
- 100000+
- 50000 $0.18
- 10000 $0.19
- 1000 $0.22
- 100 $0.29
- 10 $0.32
| Product | Inlay |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States, Canada |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Normally Stocked |
| Lead Time | Immediate |
| Minimum Order Quantity | 10 |
| Standard Packaging | 5000 Unit Roll |
| Unit Count | 1 |
| Compliance | REACH, RoHS |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | Pre NDEF Formatted |
| Chip | NXP NTAG213 |
| UID | 7-byte UID |
| NFC Memory | 144 bytes |
| NFC Standards | ISO 14443 Type A, NFC Forum - Type 2 |
| On-Metal | No |
| Operating Temperature | -25° C to 70° C |
| Antenna Dimensions | 15 mm (⌀) |
| Dimensions | 18 mm (⌀) x 0.2 mm (H) |
| Shape | Circle |
| Size | Small |
| Weight (kg) | 0.003000 |
| Color | Clear |
| Finish | Glossy |
| Attachment | Adhesive |
| Adhesive | Hot Melt |
| Materials | Adhesive, Aluminum, BOPP, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 30 mm (L) x 30 mm (W) x 0.05 mm (H) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Delivery Format | Individual, Strip, Fanfold, Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Roll Outer Diameter | ≤ 200 mm (⌀) |
| Shelf Life | 1 Year @ 23° C, 50% RH |
