Simple NFC Inlay - NTAG216 - 25 mm Circle

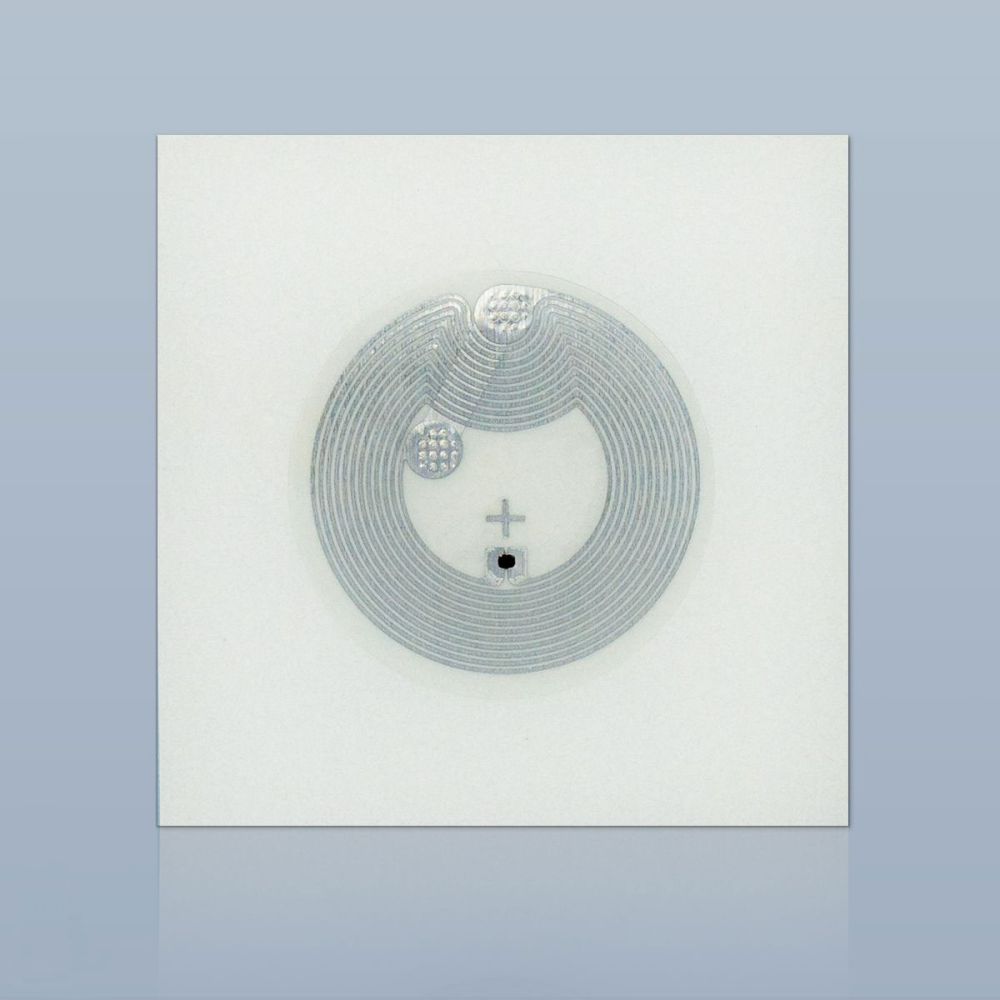

A clear, small, round NFC inlay with an NXP NTAG216 NFC chip. The chip and antenna are face down on the adhesive with the surrounding PET facing up. Simple NFC inlays are thin and low cost due to the absence of an additional surface layer. The antenna can be felt if a finger is run across the surface of the inlay.
SKU
HG5W9BYET8
  • Quantity Unit Price
  • 100000+
  • 50000
  • 10000
  • 1000 $0.45
  • 100 $0.52
  • 10 $0.55
More Information
ProductInlay
ManufacturerGeneric
Country of ManufactureChina
Shipment OriginUnited States, China
Harmonized Tariff Code8523.52.10 (Smart Cards - Unrecorded)
AvailabilityLimited Supply
Lead TimeImmediate
Minimum Order Quantity10
Standard Packaging2000 Unit Roll
Unit Count1
Tag TechnologyNFC
Frequency13.56 MHz (NFC)
NFC CertificationNFC Forum
NDEF FormattingPre NDEF Formatted
ChipNXP NTAG216
UID7-byte UID
NFC Memory888 bytes
NFC StandardsISO 14443 Type A, NFC Forum - Type 2
On-MetalNo
Operating Temperature-25° C to 70° C
Antenna Dimensions22 mm (⌀)
Dimensions25 mm (⌀) x 0.18 mm (H)
ShapeCircle
SizeSmall
Weight (kg)0.003000
ColorClear
FinishGlossy
AttachmentAdhesive
AdhesiveAcrylic
MaterialsAdhesive, Aluminum, IC, PET, Silicone Paper Liner
StiffnessFlexible
DurabilityLight Use, Water Resistant
Layout1 Wide
Media Dimensions35 mm (L) x 35 mm (W)
Label CutKiss Cut
Label MatrixOff
Label SensingGap
Delivery FormatIndividual, Strip, Fanfold, Roll
Roll Inner Diameter76.2 mm (3") (⌀) Core
Roll Outer Diameter≤ 190 mm (⌀)
Shelf Life1 Year @ 23° C, 50% RH
