Simple NFC Inlay - ST25TN01K - 38 mm Circle

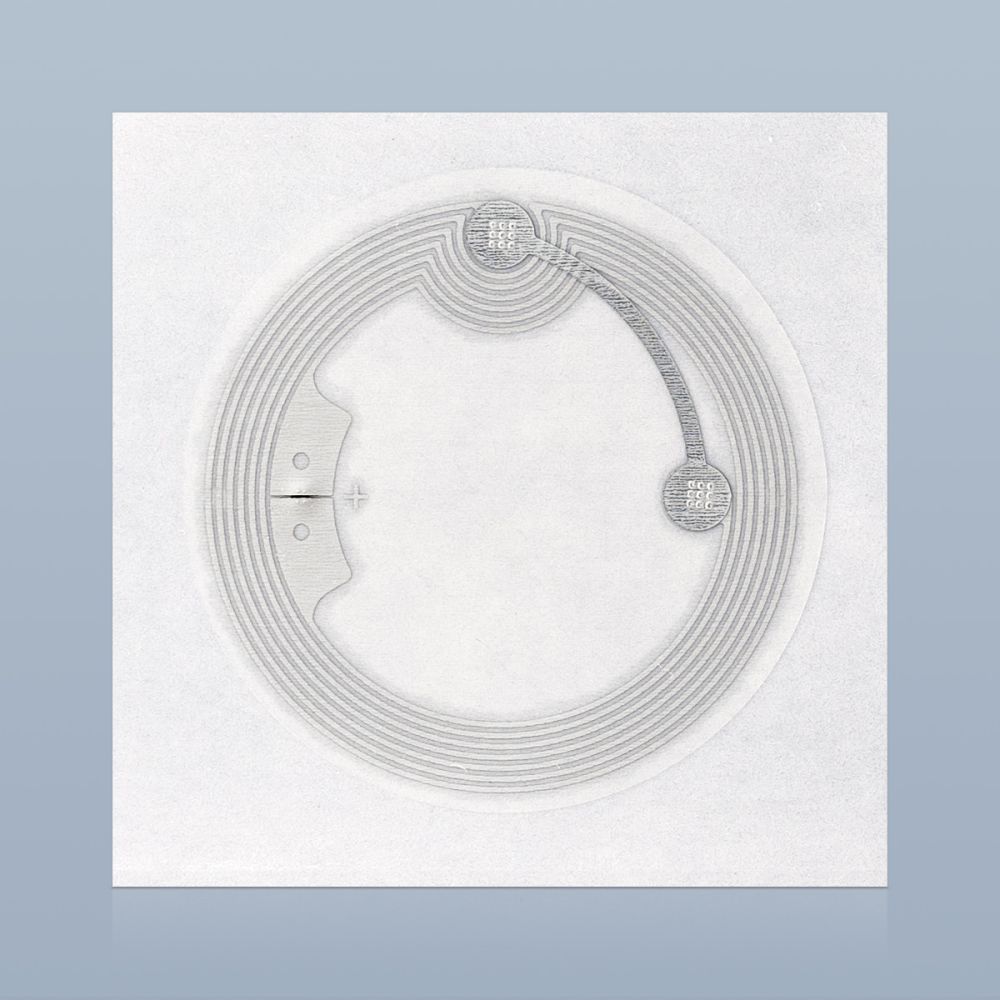

A medium-size, round, clear NFC inlay with an ST25TN01K NFC chip. The antenna is face down on the adhesive with the surrounding PET facing up. Simple NFC inlays are thin and low cost due to the absence of an additional surface layer. The antenna can be felt if a finger is run across the surface of the inlay.
SKU
5A7LTMNK3D
- Quantity Unit Price
- 500000+
- 100000
- 10000
- 5000
| Product | Inlay |
|---|---|
| Manufacturer | Generic |
| Country of Manufacture | China |
| Shipment Origin | United States, China |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 3 Weeks |
| Minimum Order Quantity | 5000 |
| Standard Packaging | 2000 Unit Roll |
| Compliance | REACH, RoHS |
| Tag Technology | NFC |
| Frequency | 13.56 MHz (NFC) |
| NFC Certification | NFC Forum |
| NDEF Formatting | Pre NDEF Formatted |
| Chip | ST ST25TN01K |
| UID | 7-byte UID |
| NFC Memory | 156 bytes |
| NFC Standards | ISO 14443 Type A, NFC Forum - Type 2 |
| On-Metal | No |
| Operating Temperature | -25° C to 70° C |
| Antenna Dimensions | 33 mm (⌀) |
| Dimensions | 38 mm (⌀) x 0.2 mm (H) |
| Shape | Circle |
| Size | Medium |
| Weight (kg) | 0.003000 |
| Color | Clear |
| Finish | Matte |
| Attachment | Adhesive |
| Adhesive | Hot Melt |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 45 mm (L) x 45 mm or 47 mm (W) x 0.05 mm (H) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Individual, Strip, Fanfold, Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Roll Outer Diameter | ≤ 240 mm (⌀) |
| Shelf Life | 1 Year @ 23° C, 50% RH |
