Smartrac Belt UHF RFID Paper Tag - NXP UCODE 9 - 73 x 17 mm Rectangle

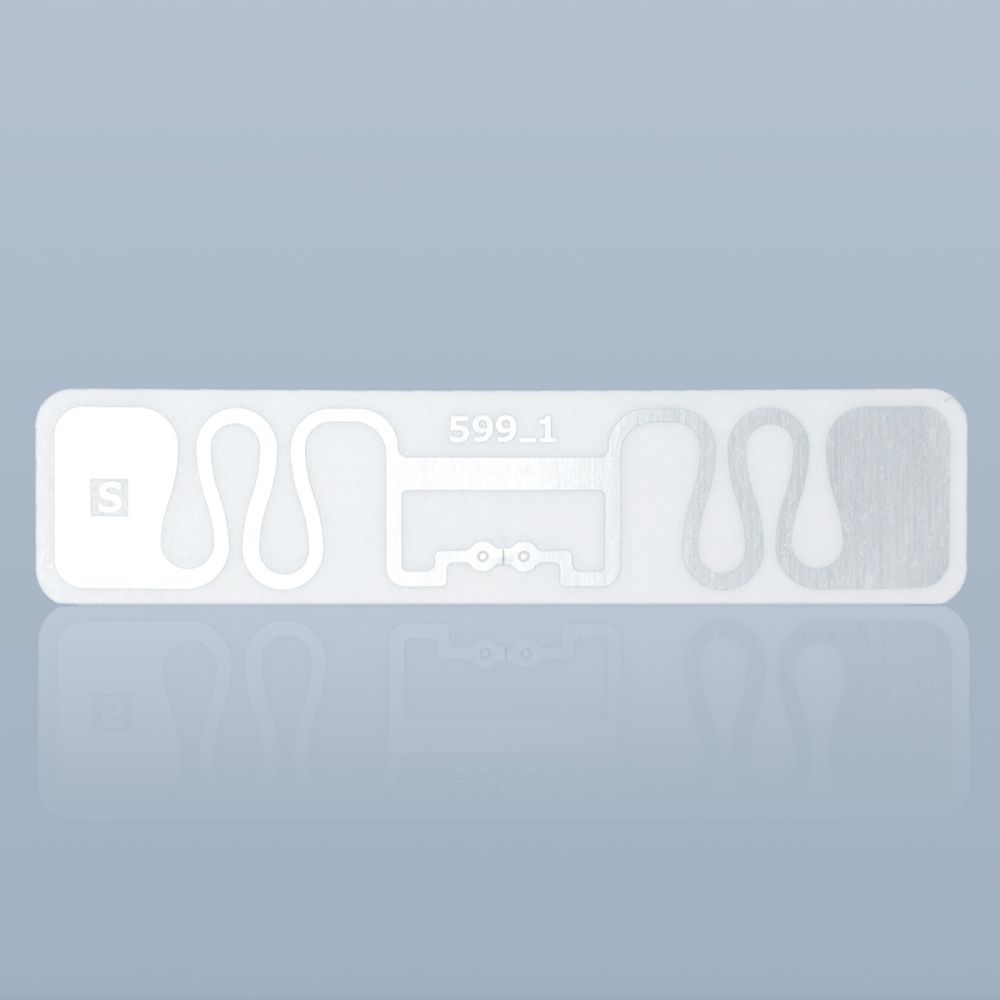

A white, large, rectangular, belt-style UHF RFID paper tag with an NXP UCODE 9 chip. The chip and antenna are face up on a PET substrate under a layer of white paper; they are thermal printable.
SKU
8L4EYW3LY3
- Quantity Unit Price
- 100000+
- 50000
- 30000 $0.12
- 10000 $0.14
- 5000 $0.17
- 1000 $0.29
- 100 $0.79
| Product | Sticker |
|---|---|
| Manufacturer | SMARTRAC |
| Manufacturer Sku | 3008010 |
| Country of Manufacture | China |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 2 Weeks |
| Minimum Order Quantity | 100 |
| Standard Packaging | Box of two 5000 Unit Rolls |
| Unit Count | 1 |
| Compliance | EPC Gen2 |
| Tag Technology | UHF RFID |
| Frequency | 860-960 MHz (UHF) |
| ARC-Certified | Yes |
| ARC Spec | Spec F, Spec G, Spec I, Spec K, Spec L, Spec N, Spec Q, Spec W1, Spec W2, Spec W3, Spec W4, Spec W5, Spec W6, Spec Y2 |
| Chip | NXP UCODE 9 |
| UHF RFID Memory | EPC 96 Bits; User 0 Bits |
| UHF RFID Standards | ISO 18000-63 / Gen 2 |
| Air Interface Protocol | EPC Class 1 Gen 2, ISO 18000-63 |
| UHF RFID Read Range | Far |
| On-Metal | No |
| Operating Temperature | -40° C to 85° C |
| Antenna Dimensions | 70 mm (L) x 14 mm (W) |
| Dimensions | 73 mm (L) x 17 mm (W) |
| Shape | Rounded Rectangle |
| Size | Large |
| Color | White |
| Finish | Semi-Gloss |
| Attachment | Adhesive |
| Adhesive | Acrylic |
| Materials | Adhesive, Aluminum, IC, Paper, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 20 mm (L) x 80 mm (W) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Shelf Life | 2 Years @ 23° C, 50% RH |
| In-House Print Technology Used | Thermal Transfer |
| Supported Print Technology | Thermal Transfer |
