Smartrac Mini Dose Clear Wet UHF RFID Inlay - NXP UCODE 9 - 24 x 14 mm Rectangle

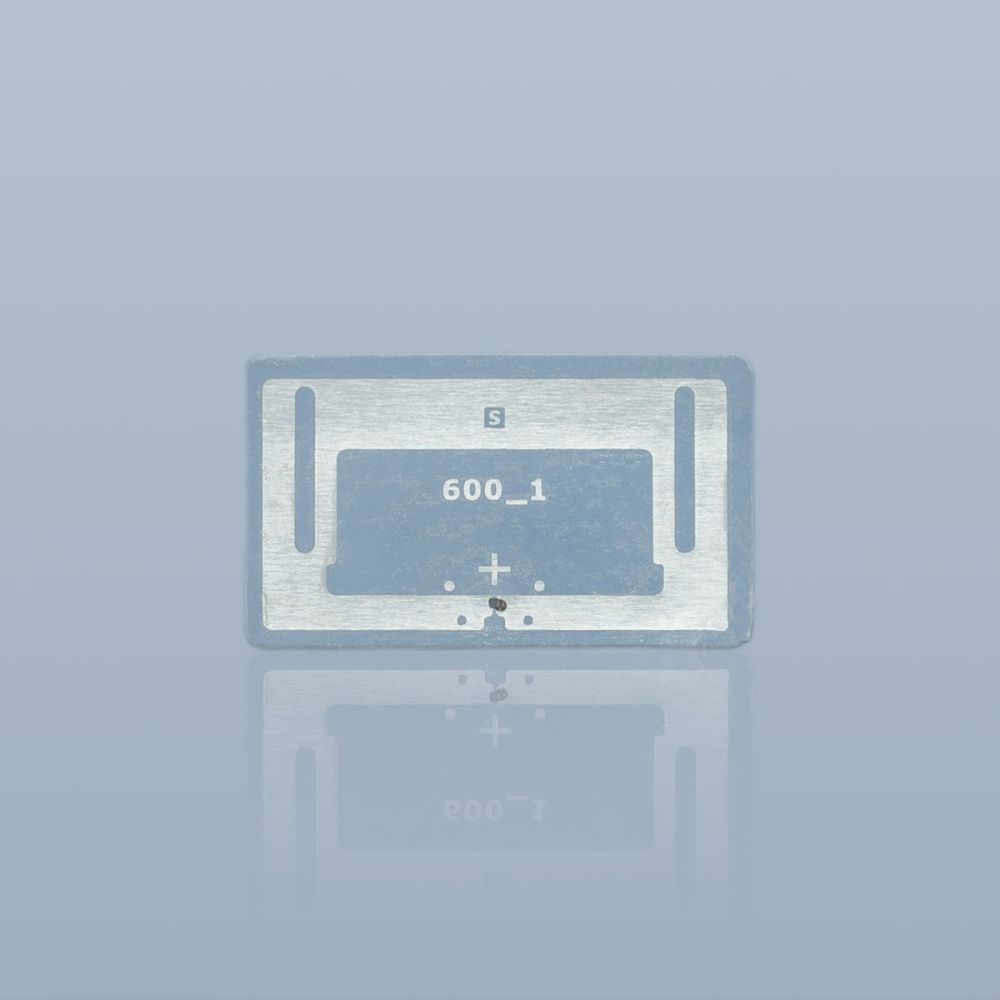

A clear, small, rectangular UHF RFID inlay with an NXP UCODE 9 chip. The chip and antenna are face up on a clear PET substrate under a surface layer of clear PET plastic.
SKU
L78XAWFTFG
- Quantity Unit Price
- 1000000+
- 500000
- 100000 $0.07
This product is printable by GoToTags. See Printing tab below for details.
| Product | Inlay |
|---|---|
| Manufacturer | SMARTRAC |
| Manufacturer Sku | 3008073 |
| Country of Manufacture | China |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 4 - 6 Months |
| Minimum Order Quantity | 100000 |
| Standard Packaging | Box of three 5000 Unit Rolls |
| Unit Count | 1 |
| Compliance | EPC Gen2 |
| Tag Technology | UHF RFID |
| Frequency | 860-960 MHz (UHF) |
| ARC-Certified | Yes |
| ARC Spec | Spec S |
| Chip | NXP UCODE 9 |
| UHF RFID Memory | EPC 96 Bits; User 0 Bits |
| UHF RFID Standards | ISO 18000-63 / Gen 2 |
| Air Interface Protocol | EPC Class 1 Gen 2, ISO 18000-63 |
| UHF RFID Read Range | Near |
| On-Metal | No |
| Operating Temperature | -40° C to 85° C |
| Antenna Dimensions | 22 mm (L) x 12 mm (W) |
| Dimensions | 24 mm (L) x 14 mm (W) |
| Shape | Rounded Rectangle |
| Size | Medium |
| Color | Clear |
| Finish | Glossy |
| Attachment | Adhesive |
| Adhesive | Acrylic |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 27 mm (L) x 27 mm (W) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Shelf Life | 2 Years @ 23° C, 50% RH |
| In-House Print Technology Used | Thermal Transfer |
| Supported Print Technology | Thermal Transfer |
