Tageos EOS-500 Clear Wet UHF RFID Inlay 15k Roll - NXP UCODE 9 - 97 x 27 mm Rectangle

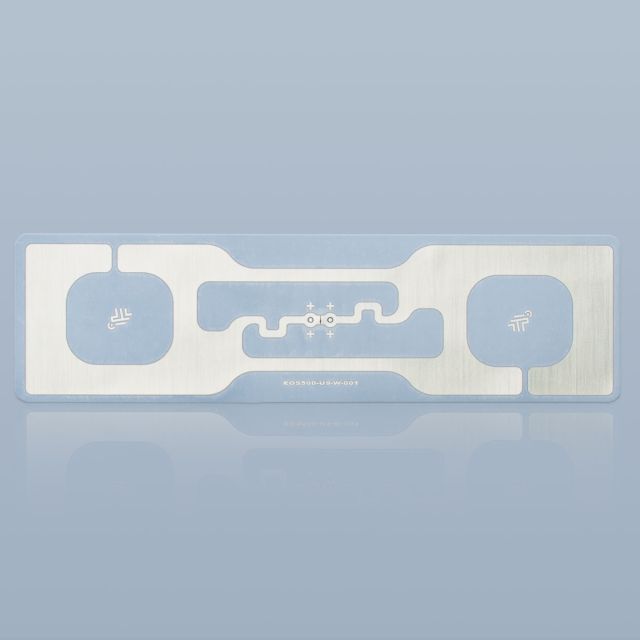

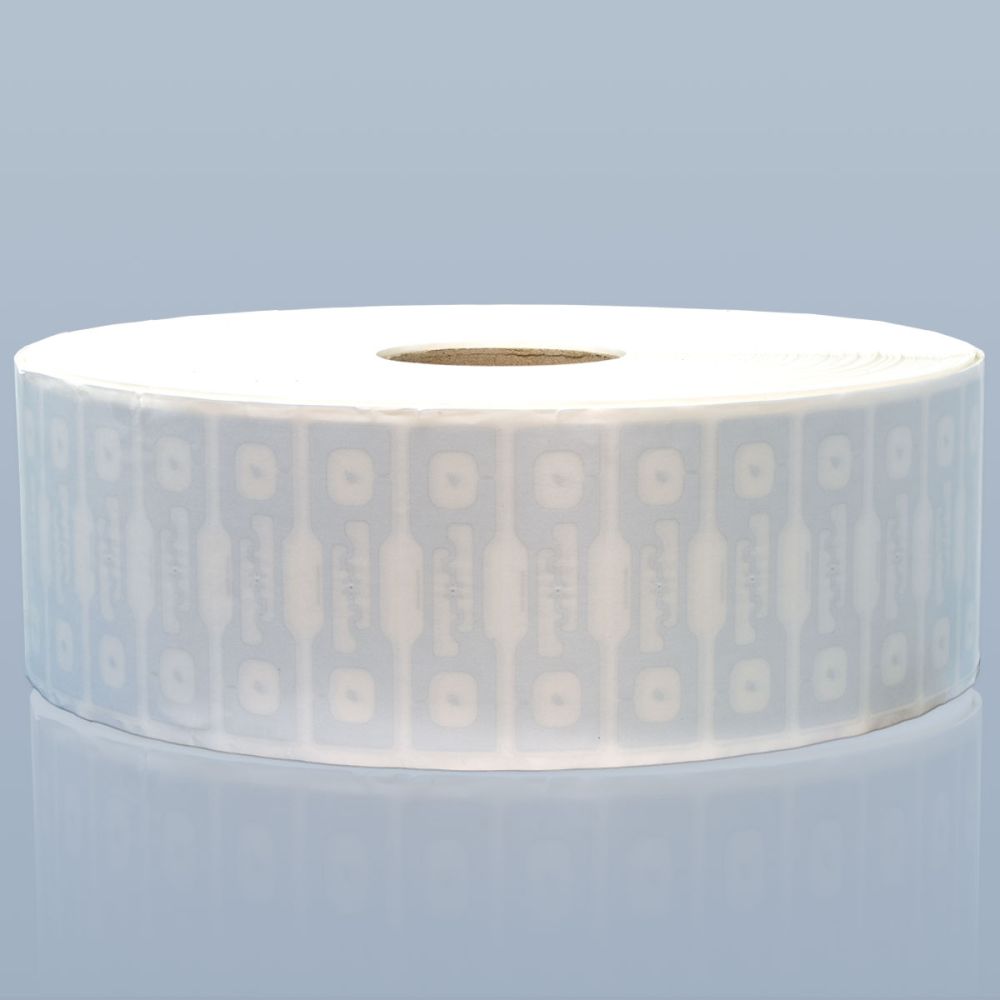

A clear, large, rectangular, UHF RFID inlay with an NXP UCODE 9 chip on a 15,000 piece roll. The chip and antenna are face up on a PET substrate under a layer of PET; thermal printable.
SKU
XNXWEACN5W
- Quantity Unit Price
- 67+ $1,487.14
- 34 $1,552.39
- 17 $1,575.45
- 7 $1,599.23
- 4 $1,649.05
- 1 $1,730.00
This product is printable by GoToTags. See Printing tab below for details.
| Product | Inlay |
|---|---|
| Manufacturer | Tageos |
| Manufacturer Sku | 5000000082 |
| Country of Manufacture | France |
| Shipment Origin | United States |
| Harmonized Tariff Code | 8523.52.10 (Smart Cards - Unrecorded) |
| Availability | Special Order |
| Lead Time | 3 Weeks |
| Minimum Order Quantity | 15000 |
| Standard Packaging | Box of one 15000 Unit Roll |
| Unit Count | 1 |
| Compliance | EPC Gen2 |
| Tag Technology | UHF RFID |
| Frequency | 860-960 MHz (UHF) |
| ARC-Certified | Yes |
| ARC Spec | Spec P |
| Chip | NXP UCODE 9 |
| UHF RFID Memory | EPC 96 Bits; User 0 Bits |
| UHF RFID Standards | ISO 18000-6C / Gen 2 |
| Air Interface Protocol | EPC Class 1 Gen 2, ISO 18000-6C |
| UHF RFID Read Range | Far |
| On-Metal | No |
| Operating Temperature | -40° C to 85° C |
| Antenna Dimensions | 94 mm (L) x 24 mm (W) |
| Dimensions | 97 mm (L) x 27 mm (W) |
| Shape | Rounded Rectangle |
| Size | Large |
| Color | Clear |
| Finish | Glossy |
| Attachment | Adhesive |
| Adhesive | Acrylic |
| Materials | Adhesive, Aluminum, IC, PET, Silicone Paper Liner |
| Stiffness | Flexible |
| Durability | Light Use |
| Layout | 1 Wide |
| Media Dimensions | 30 mm (L) x 105 mm (W) |
| Label Cut | Kiss Cut |
| Label Matrix | Off |
| Label Sensing | Gap |
| Delivery Format | Roll |
| Roll Inner Diameter | 76.2 mm (3") (⌀) Core |
| Roll Outer Diameter | 326 mm (⌀) |
| Shelf Life | 2 Years @ 23° C, 50% RH |
| In-House Print Technology Used | Thermal Transfer |
| Supported Print Technology | Thermal Transfer |
